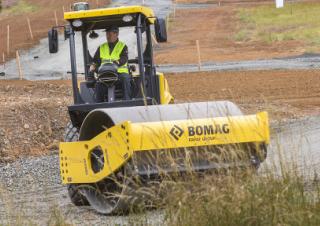

BW 213 D-5 Bomag BW 213 D-5 Specifications & Technical Data (2015—2026)
.jpg)
Visit Bomag live at
Technical specs - BW 213 D-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.5 t
- Transport length
- 3.87 m
- Transport width
- 2.27 m
- Transport height
- 2.99 m
- Vibration
- e
- Drive
- A
- Travel speed
- 11 km/h
- Frequency
- 34 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.9 mm
- Turning radius outside
- 3.677 m
- Statical line load
- 35.2 kg/cm
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 95 kW
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
