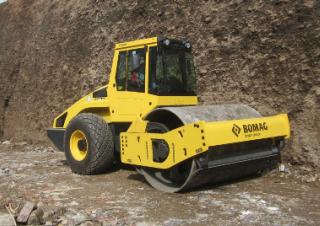

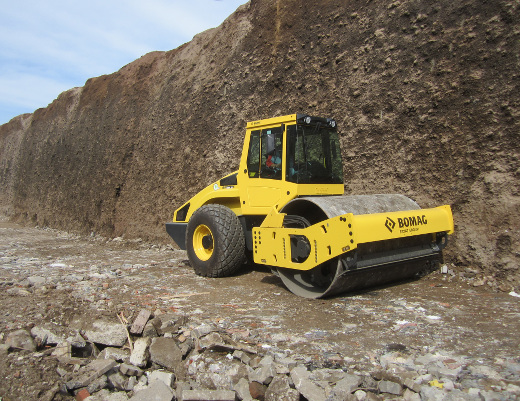

BW 211 D-4i Bomag BW 211 D-4i Specifications & Technical Data (2014—2016)
Visit Bomag live at
Technical specs - BW 211 D-4i Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.9 t
- Transport length
- 5.81 m
- Transport width
- 2.25 m
- Transport height
- 2.98 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12 km/h
- Frequency
- 36 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 3.494 m
- Statical line load
- 30 kg/cm
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 90 kW
- Dimension lxwxh
- 701 x 592 x 790 mm
- Displacement
- 3.6 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 480 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 101 x 126 mm
- Emission level
- III B
More technical details, like: turning radius inside, centrifugal force are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
