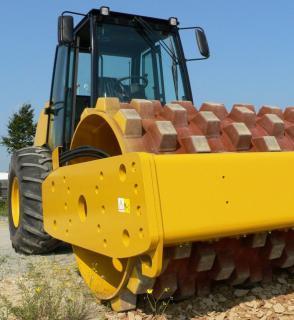

AW 1140 Atlas AW 1140 Specifications & Technical Data (2007—2012)
.jpg)
Visit Atlas live at
Technical specs - AW 1140 Atlas
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.9 t
- Transport length
- 5.76 m
- Transport width
- 2.27 m
- Transport height
- 2.92 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12.5 km/h
- Frequency
- 40 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.9 mm
- Turning radius outside
- 7.015 m
- Statical line load
- 38 kg/cm
- Model series
- AW
- Engine manuf.
- Deutz
- Engine type
- TCD2012 L04
- Engine power
- 103 kW
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Download datasheets (PDF)
Atlas AW 1140 FAQ
How much does the Atlas AW 1140 weigh?
What are the transport dimensions of the Atlas AW 1140 single-drum roller?
What is the travel speed of the Atlas AW 1140 single-drum roller?
What type of drive system does the Atlas AW 1140 have in its undercarriage?
What is the turning radius of the Atlas AW 1140 single-drum roller?
What are the compaction capabilities of the Atlas AW 1140 single-drum roller?
What are the roller specifications of the Atlas AW 1140 single-drum roller?
How much is a Atlas AW 1140 Single-drum Roller (2007u20132012) worth?
