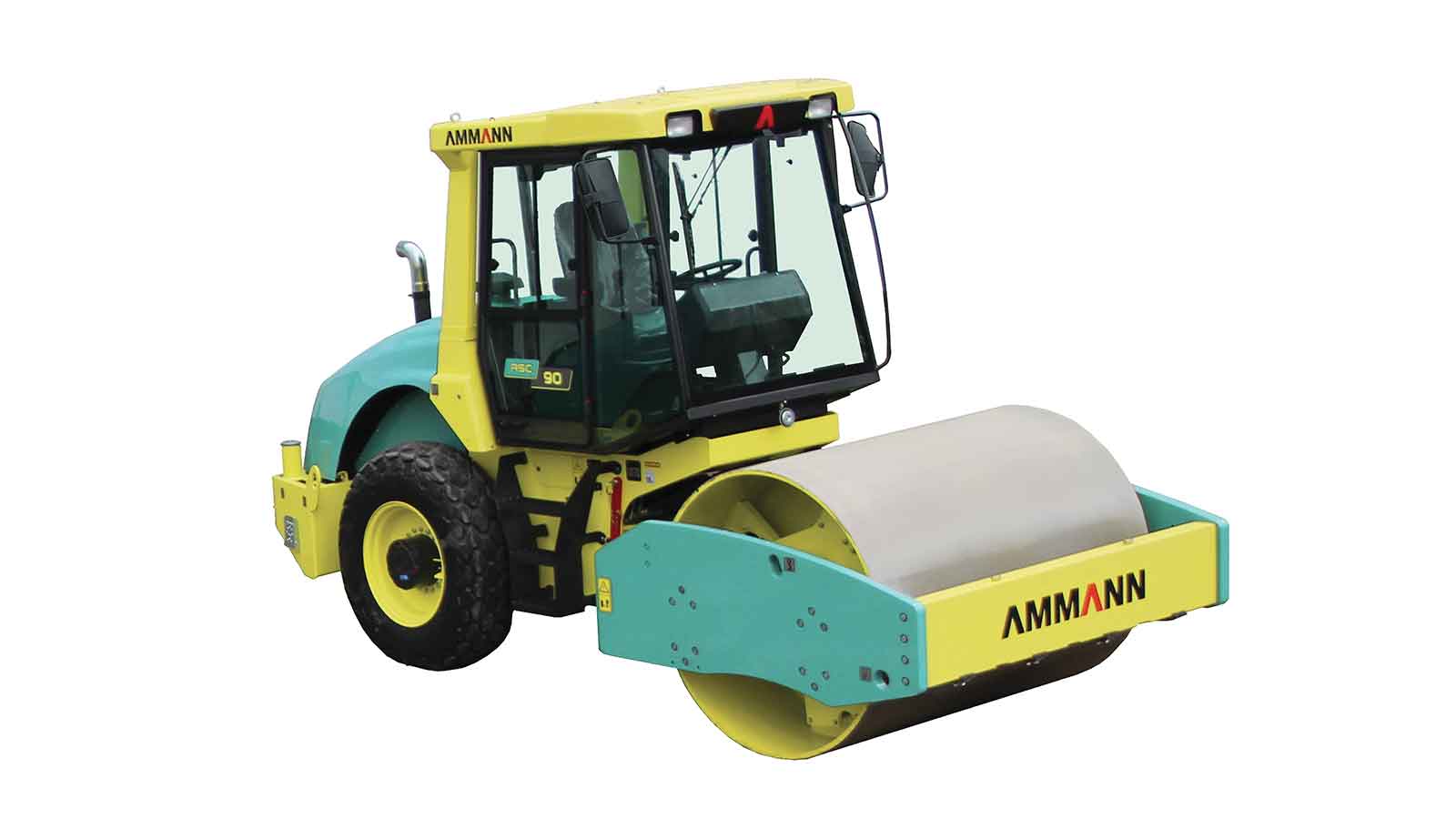

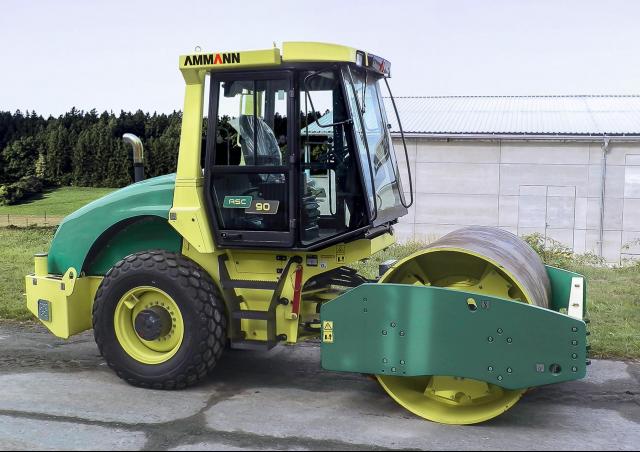

ASC 90 PD Ammann ASC 90 PD Specifications & Technical Data (2013—2022)
.jpg)
.jpg)
Technical specs - ASC 90 PD Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.94 t
- Transport length
- 5.2 m
- Transport width
- 1.93 m
- Transport height
- 2.87 m
- Vibration
- e
- Drive
- A
- Travel speed
- 11 km/h
- Frequency
- 41 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.24 m
- Amplitude
- 1.85 mm
- Model series
- ASC
- Engine manuf.
- Cummins
- Engine type
- QSB3.3-C99
- Engine power
- 74 kW
- Displacement
- 3.3 l
- Revolutions at max torque
- 1400 rpm
- No. of cylinders
- 4
- Emission level
- Tier 3
More technical details, like: turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Ammann ASC 90 PD FAQ
How much does the Ammann ASC 90 PD weigh?
What are the transport dimensions of the Ammann ASC 90 PD single-drum roller?
What is the travel speed of the Ammann ASC 90 PD single-drum roller?
What type of drive system does the Ammann ASC 90 PD have in its undercarriage?
What are the compaction capabilities of the Ammann ASC 90 PD single-drum roller?
What are the roller specifications of the Ammann ASC 90 PD single-drum roller?
How much is a Ammann ASC 90 PD Single-drum Roller (2013u20132022) worth?
Machine inspection
Ask for inspection of your Ammann ASC 90 PD from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Ammann ASC 90 PD with similar Single-drum Rollers
.jpg)

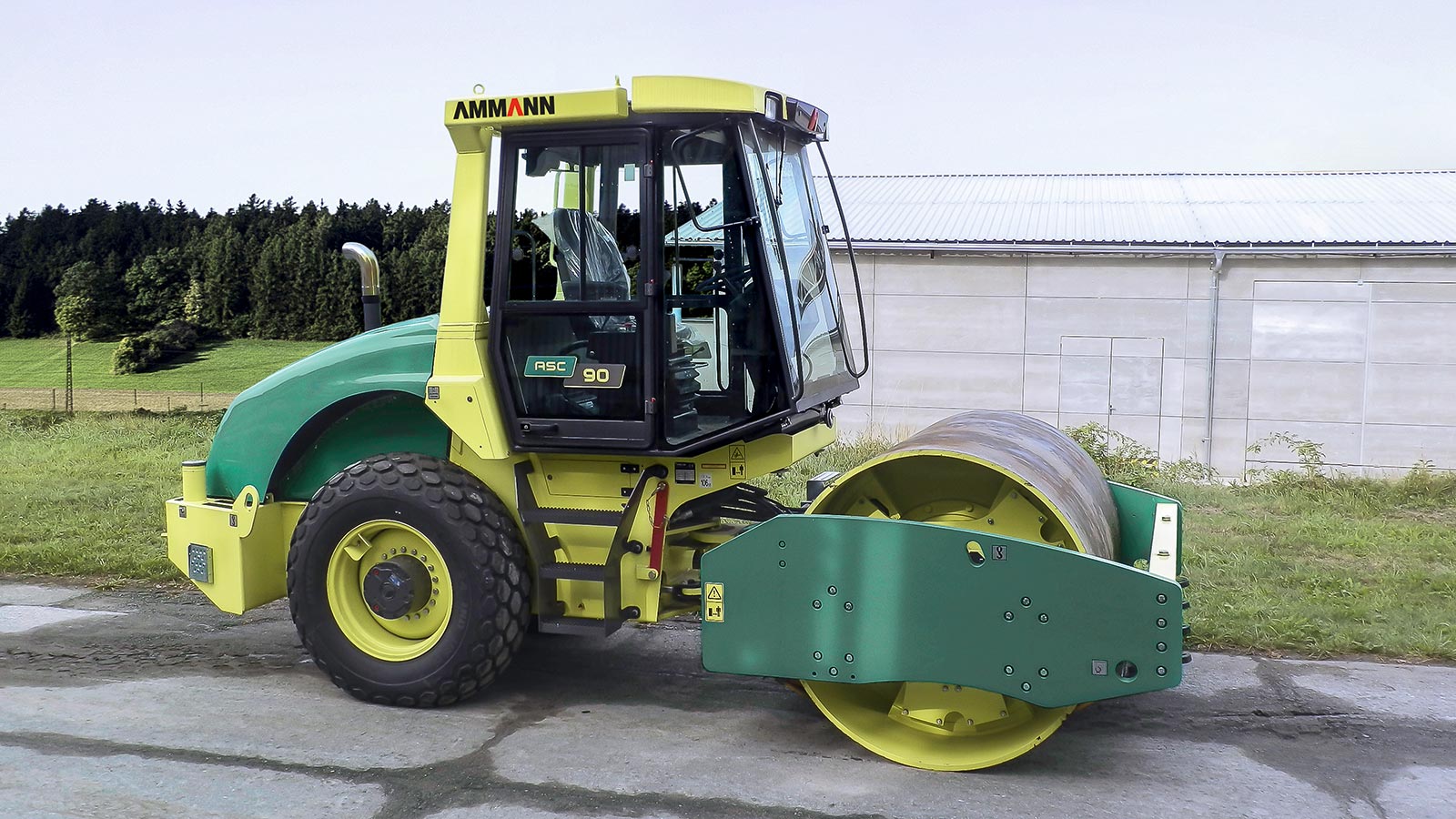

Ammann ASC 90 PD
