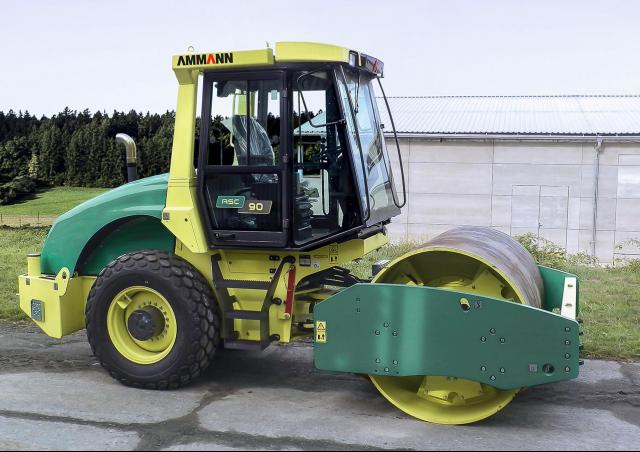

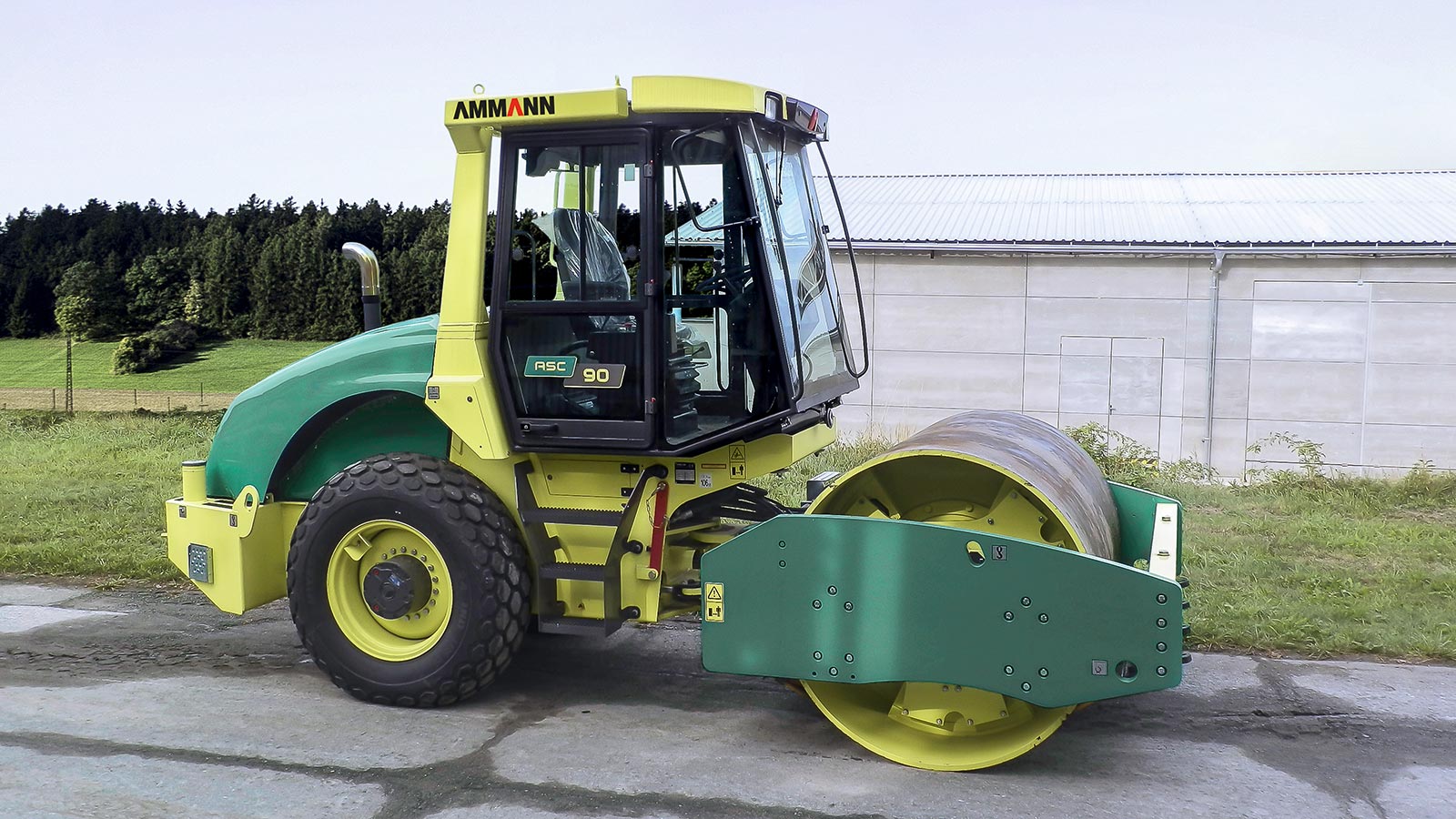

ASC 90 D Ammann ASC 90 D Specifications & Technical Data (2013—2022)
.jpg)
.jpg)
Technical specs - ASC 90 D Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.09 t
- Transport length
- 5.2 m
- Transport width
- 1.93 m
- Transport height
- 2.87 m
- Vibration
- e
- Drive
- A
- Travel speed
- 11 km/h
- Frequency
- 41 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.3 m
- Amplitude
- 1.85 mm
- Statical line load
- 32 kg/cm
- Model series
- ASC
- Engine manuf.
- Cummins
- Engine type
- QSB3.3-C99
- Engine power
- 74 kW
- Displacement
- 3.3 l
- Revolutions at max torque
- 1400 rpm
- No. of cylinders
- 4
- Emission level
- Tier 3
More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
