ASC 150 HT Ammann ASC 150 HT Specifications & Technical Data (2007—2022)

Weight: 15.7t – Transport length: 5.7m – Transport width: 2.4m – Transport height: 3m – Vibration: e – Drive: A

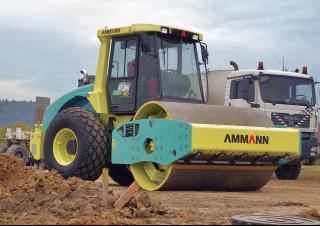

Rollers Single-drum Rollers Ammann ASC 150 HT

ASC 150 HT

Years of manufacture: 2007—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ASC 150 HT Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.7 t

Transport length: 5.7 m

Transport width: 2.4 m

Transport height: 3 m

Vibration: e

Drive: A

Travel speed: 8 km/h

Frequency: 36 Hz

Roller width: 2.2 m

Rollers Ø: 1.5 m

Amplitude: 1.85 mm

Statical line load: 47 kg/cm

Model series: ASC

Engine manuf.: Cummins

Engine type: QSB5.9-C160

Engine power: 119 kW

Displacement: 5.9 l

Revolutions at max torque: 2200 rpm

More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: Yes
Oscillation: No
Compression control: Yes
Aircondition: No

Download datasheets (PDF)

Ammann ASC 150 HT FAQ

When was the Ammann ASC 150 HT manufactured?

The Ammann ASC 150 HT was manufactured from 2007 to 2022.

How much does the Ammann ASC 150 HT weigh?

The Ammann ASC 150 HT weighs 15.7 tons.

What are the transport dimensions of the Ammann ASC 150 HT?

The Ammann ASC 150 HT has a transport length of 5.7 meters, a transport width of 2.4 meters, and a transport height of 3 meters.

What is the travel speed of the Ammann ASC 150 HT?

The Ammann ASC 150 HT has a travel speed of 8 km/h.

What type of drive does the undercarriage of the Ammann ASC 150 HT have?

The undercarriage of the Ammann ASC 150 HT has an all-wheel drive.

What are the compaction capabilities of the Ammann ASC 150 HT single-drum roller?

The Ammann ASC 150 HT features a single vibration system with a frequency of 36 Hz, an amplitude of 1.85 mm, and a statical line load of 47 kg/cm.

What are the roller specifications of the Ammann ASC 150 HT single-drum roller?

The Ammann ASC 150 HT has a roller width of 2.2 meters and a roller diameter of 1.5 meters.

How much is a Ammann ASC 150 HT Single-drum Roller (2007u20132022) worth?

The residual value of the Ammann ASC 150 HT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
