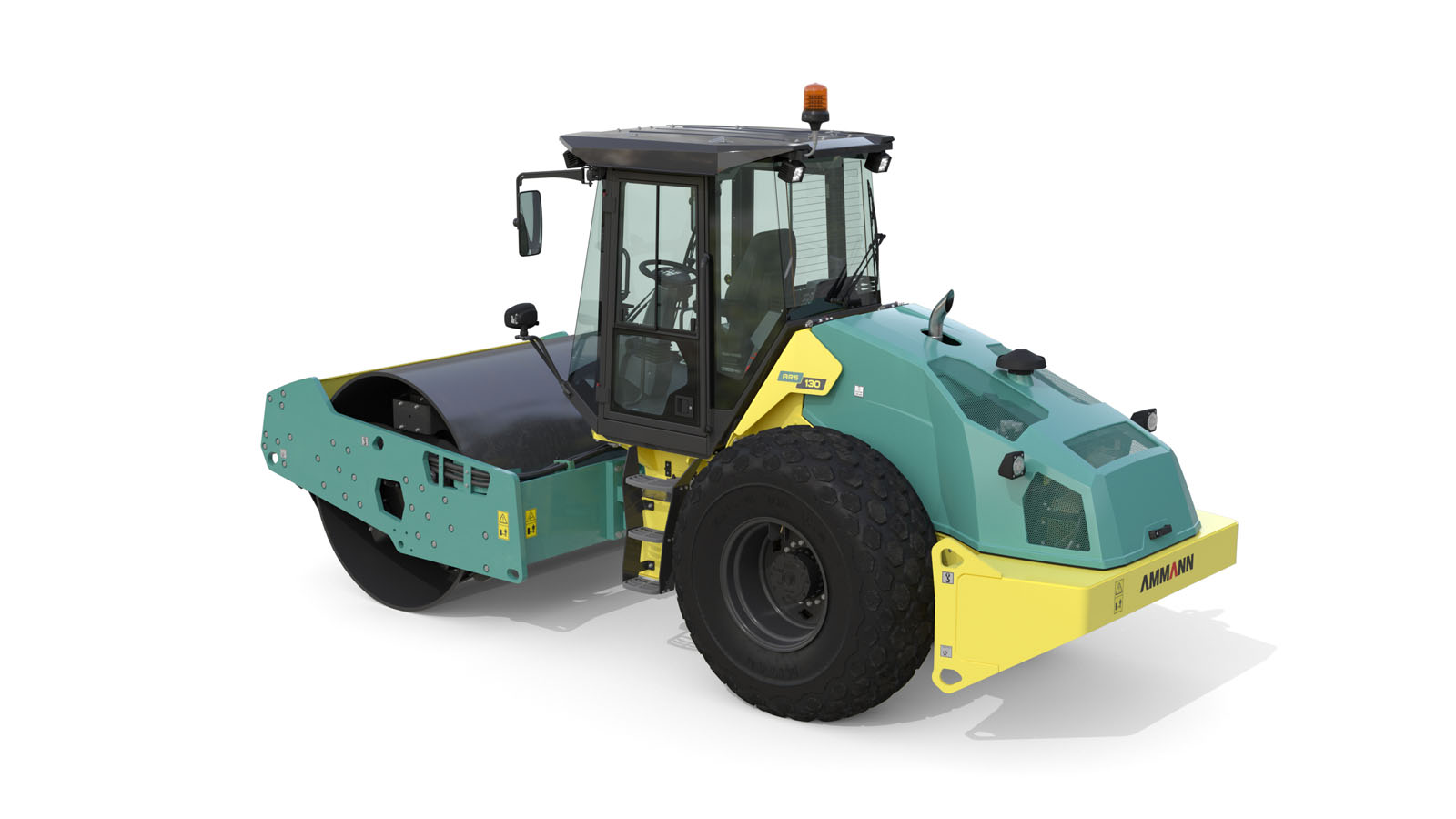

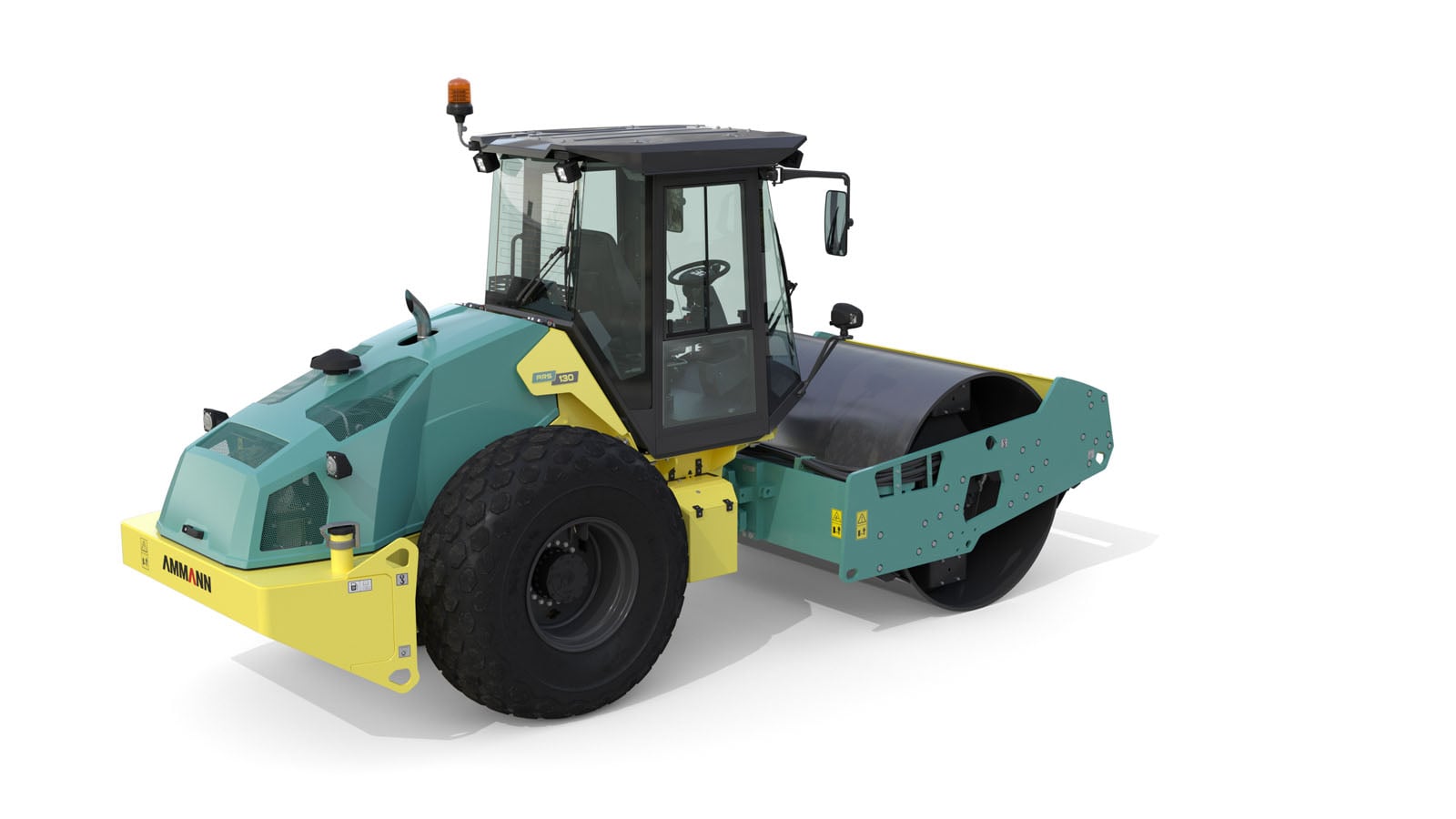

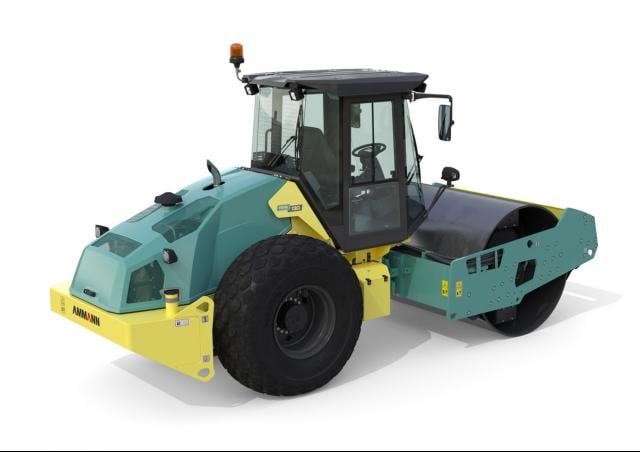

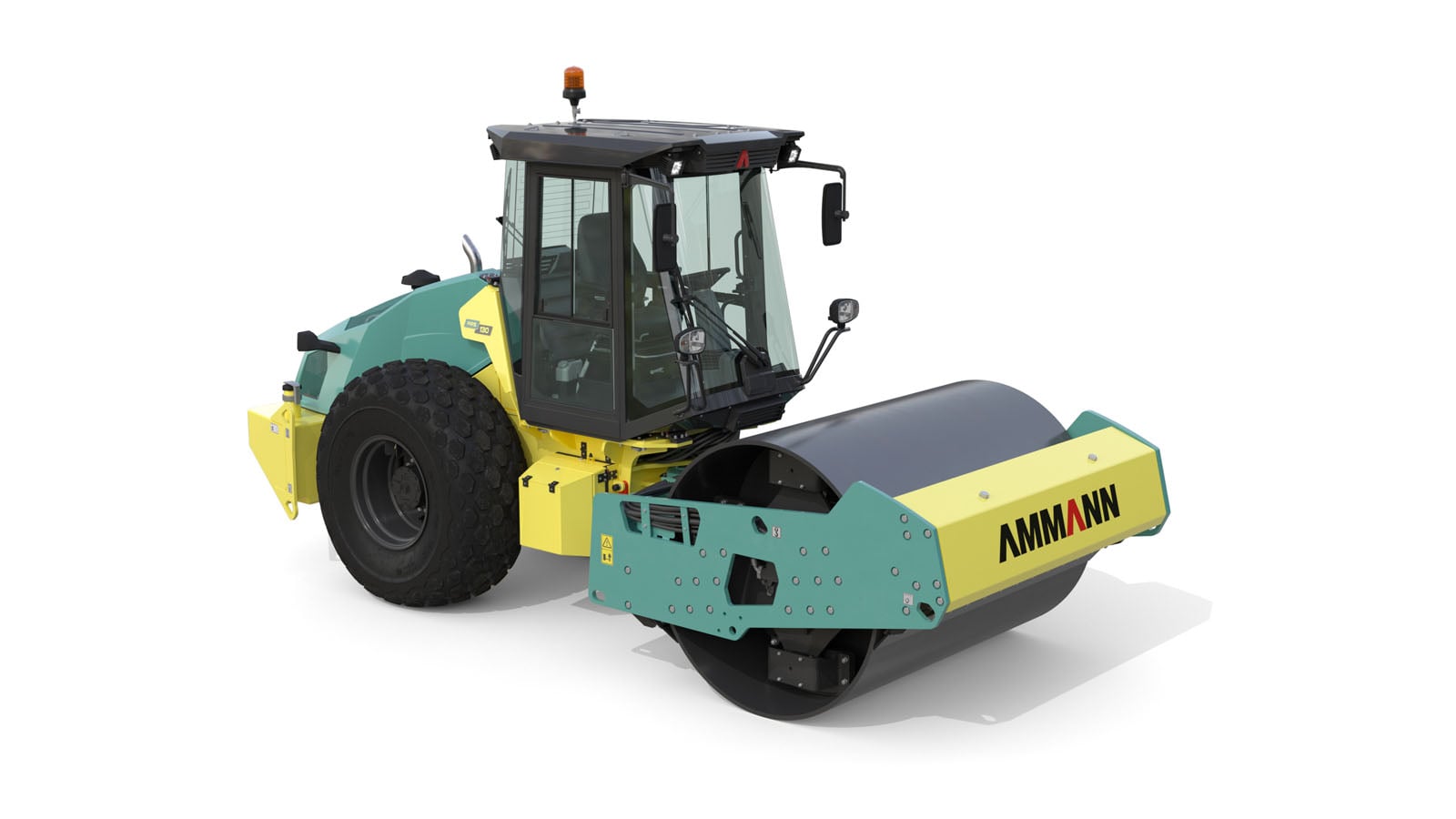

Ammann ARS 130 Specifications & Technical Data (2019-2026)

Technical specs - ARS 130 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.35 t

Transport length: 5.9 m

Transport width: 2.26 m

Transport height: 2.97 m

Vibration: e

Drive: A

Frequency: 35 Hz

Roller width: 2.13 m

Rollers Ø: 1.5 m

Amplitude: 2.06 mm

Turning radius inside: 3.6 m

Statical line load: 33.8 kg/cm

Model series: ARS

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 100 kW

Emission level: EU V

More technical details, like: travel speed, turning radius outside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: Yes
Sheep foot: Yes
Oscillation: No
Compression control: Yes
Aircondition: Yes

Download datasheets (PDF)

Ammann ARS 130 FAQ

When was the Ammann ARS 130 manufactured?

The Ammann ARS 130 was first produced in 2019.

How much does the Ammann ARS 130 weigh?

The Ammann ARS 130 weighs 15.35 tons.

What are the transport dimensions of the Ammann ARS 130 single-drum roller?

The Ammann ARS 130 has transport dimensions of 5.9 meters in length, 2.26 meters in width, and 2.97 meters in height.

What type of drive system does the Ammann ARS 130 have in its undercarriage?

The Ammann ARS 130 has an all-wheel drive system in its undercarriage.

What is the turning radius inside of the Ammann ARS 130?

The Ammann ARS 130 has an inside turning radius of 3.6 meters.

What are the compaction capabilities of the Ammann ARS 130 single-drum roller?

The Ammann ARS 130 features a single vibration system operating at a frequency of 35 Hz with an amplitude of 2.06 mm and a statical line load of 33.8 kg/cm.

What are the roller specifications of the Ammann ARS 130 single-drum roller?

The Ammann ARS 130 has a roller width of 2.13 meters and a roller diameter of 1.5 meters.

How much is a Ammann ARS 130 Single-drum Roller (2019u20132025) worth?

The residual value of the Ammann ARS 130 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Ammann ARS 130 overview

Ammann ARS 130 features overview

Applications

Medium and large jobsites Railways Harbours Motorways Structure backfill work Airfields Industrial zones Dumpsite construction

Ergonomics

Spacious, quiet cab with integrated ROPS structure New multifunctional display for intuitive machine control and operation Excellent machine visibility with 360° view to machine edges and surroundings Innovative travel lever with speed adjustment and wider machine speed range (newly 5+1 speed instead of 3+1)

Engine and powertrain

Serviceability

All service points and engine compartment accessible from the ground Wide-opening rear hood for easy and fast daily maintenance Tiltable cab for exceptional access to main hydraulic components, which significantly reduces labour ECOdrop – machine efficiency and reductions in fuel consumption and required fluids

Roller

Productivity

High compaction output - faster compaction of thicker layers in fewer passes No-rear-axle concept – optimal stability and low center of gravity, which significantly improves safety on jobsites Variable range of vibration frequencies for added versatility ACEforce Intelligent Compaction tool for higher compaction efficiency
