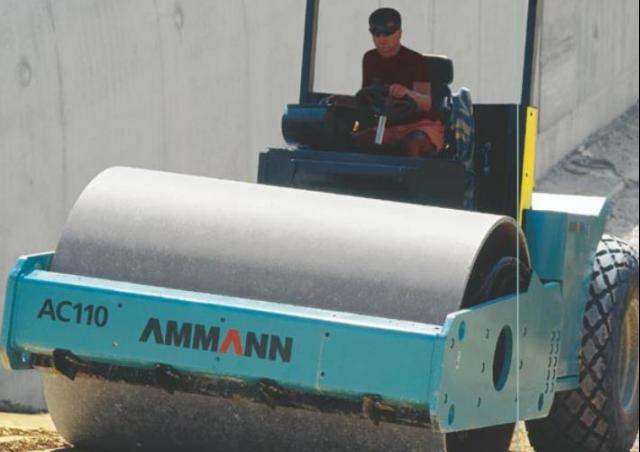

AC 110-2 Ammann AC 110-2 Specifications & Technical Data (2000—2005)
Technical specs - AC 110-2 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.6 t
- Transport length
- 5.5 m
- Transport width
- 2.28 m
- Transport height
- 3 m
- Vibration
- e
- Travel speed
- 12 km/h
- Frequency
- 28 Hz
- Roller width
- 2.15 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 6.5 m
- Statical line load
- 33.2 kg/cm
- Model series
- AC
- Engine manuf.
- Cummins
- Engine type
- 4BTA5.9
- Engine power
- 90 kW
- Revolutions at max torque
- 2200 rpm
More technical details, like: drive, turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
