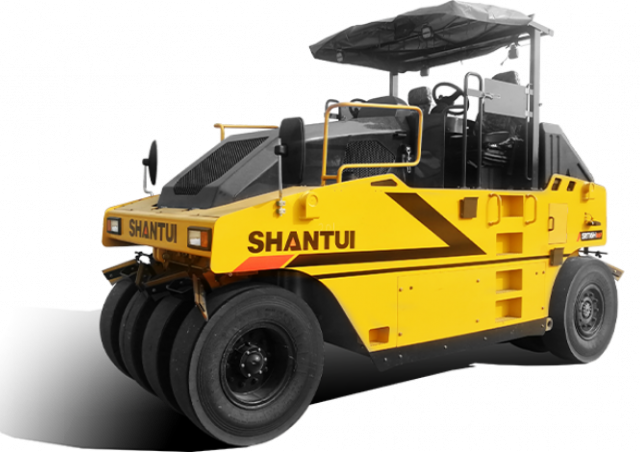

SRT16H-B6F Shantui SRT16H-B6F Specifications & Technical Data (2023—2026)

Weight: 11.34t – Transport length: 4.96m – Transport width: 2.332m – Transport height: 3.4m – max. total weight: 16t – Travel speed: 14km/h

Rollers Rubber-wheeled Rollers Shantui SRT16H-B6F

Technical specs - SRT16H-B6F Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.34 t
Transport length
4.96 m
Transport width
2.332 m
Transport height
3.4 m
max. total weight
16 t
Travel speed
14 km/h
Roller width
2.25 m
Ballast weight
4.66 t
Turning radius outside
7.575 m
Engine manuf.
Shangchai
Engine type
SC4H140.2G2
Engine power
103 kW
Displacement
4.3 l
Revolutions at max torque
1400 rpm
Max. torque
535 Nm
No. of cylinders
4
Emission level
Stage II / China II

More technical details, like: drive, wheels, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Infrared heater
No
Edging press
No
Trailer coupling
No

Download datasheets (PDF)

Shantui SRT16H-B6F FAQ

When was the Shantui SRT16H-B6F manufactured?

The Shantui SRT16H-B6F was first produced in 2023.

How much does the Shantui SRT16H-B6F rubber-wheeled roller weigh?

The Shantui SRT16H-B6F weighs 16.0 tons.

What are the transport dimensions of the Shantui SRT16H-B6F rubber-wheeled roller?

The Shantui SRT16H-B6F has a transport length of 4.96 meters, a transport width of 2.32 meters, and a transport height of 3.4 meters.

What is the travel speed of the Shantui SRT16H-B6F rubber-wheeled roller?

The Shantui SRT16H-B6F has a travel speed of 14 km/h.

What is the ballast weight of the Shantui SRT16H-B6F rubber-wheeled roller?

The Shantui SRT16H-B6F has a ballast weight of 10.7 tons.
