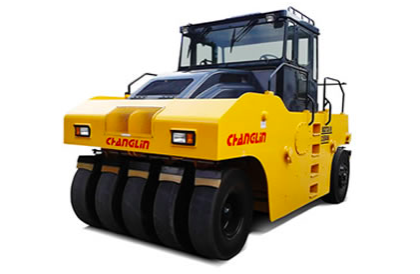

8302-5 Changlin 8302-5 Specifications & Technical Data (2017—2026)
.png)
Technical specs - 8302-5 Changlin
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 17.2 t
- Transport length
- 4.945 m
- Transport width
- 2.844 m
- Transport height
- 3.393 m
- max. total weight
- 30 t
- Travel speed
- 16 km/h
- Roller width
- 2.718 m
- Ballast weight
- 1.8 t
- Wheels
- 11
- Turning radius outside
- 9 m
More technical details, like: drive, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Edging press
-
No
- Trailer coupling
-
No
Download datasheets (PDF)
Changlin 8302-5 FAQ
What is the weight of the Changlin 8302-5 rubber-wheeled roller?
What are the transport dimensions of the Changlin 8302-5 rubber-wheeled roller?
What is the travel speed of the Changlin 8302-5 rubber-wheeled roller?
How many wheels does the undercarriage of the Changlin 8302-5 rubber-wheeled roller have?
What is the outside turning radius of the Changlin 8302-5?
What are the roller specifications of the Changlin 8302-5 rubber-wheeled roller?
How much is a Changlin 8302-5 Rubber-wheeled Roller (2017u20132025) worth?
Machine inspection
Ask for inspection of your Changlin 8302-5 from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Changlin 8302-5 with similar Rubber-wheeled Rollers
.png)

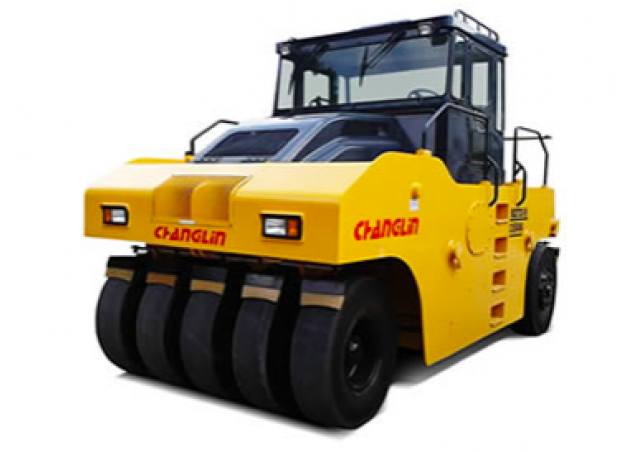

Changlin 8302-5
