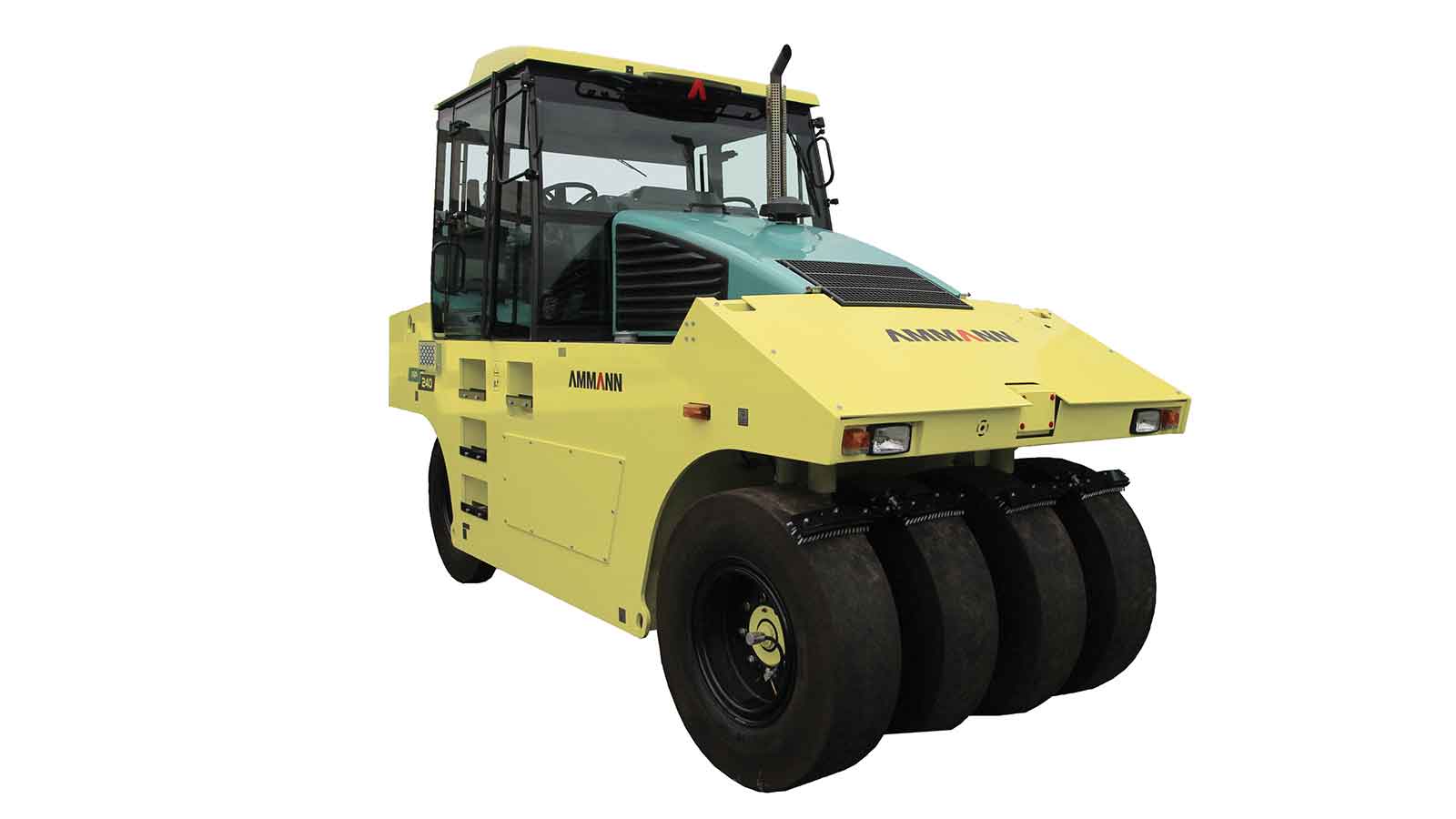

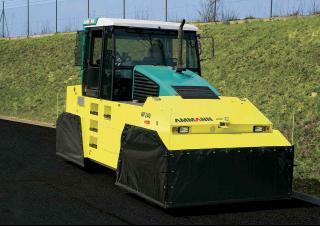

AP 240 T2 Ammann AP 240 T2 Specifications & Technical Data (2013—2021)

Weight: 9.34t – Transport length: 4.775m – Transport width: 2.265m – Transport height: 3.11m – max. total weight: 24t – Travel speed: 19km/h

Rollers Rubber-wheeled Rollers Ammann AP 240 T2

AP 240 T2

Years of manufacture: 2013—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AP 240 T2 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.34 t

Transport length: 4.775 m

Transport width: 2.265 m

Transport height: 3.11 m

max. total weight: 24 t

Travel speed: 19 km/h

Roller width: 1.986 m

Wheels: 8

Turning radius outside: 5.35 m

Model series: AP

Engine manuf.: Cummins

Engine type: BT4.5C99

Engine power: 74 kW

Displacement: 4.5 l

More technical details, like: drive, ballast weight, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Edging press: No
Trailer coupling: Yes

Download datasheets (PDF)

Ammann AP 240 T2 FAQ

When was the Ammann AP 240 T2 manufactured?

The Ammann AP 240 T2 was manufactured from 2013 to 2021.

What is the weight of the Ammann AP 240 T2 rubber-wheeled roller?

The Ammann AP 240 T2 weighs 9.34 tons and has a maximum total weight of 24 tons.

What are the transport dimensions of the Ammann AP 240 T2 rubber-wheeled roller?

The Ammann AP 240 T2 has a transport length of 4.78 meters, a transport width of 2.27 meters, and a transport height of 3.11 meters.

What is the travel speed of the Ammann AP 240 T2 rubber-wheeled roller?

The Ammann AP 240 T2 has a travel speed of 19 km/h.

How many wheels does the undercarriage of the Ammann AP 240 T2 have?

The undercarriage of the Ammann AP 240 T2 has 8 wheels.

What is the outside turning radius of the Ammann AP 240 T2 rubber-wheeled roller?

The Ammann AP 240 T2 has an outside turning radius of 5.35 meters.

What is the roller width of the Ammann AP 240 T2 rubber-wheeled roller?

The Ammann AP 240 T2 has a roller width of 1.99 meters.
