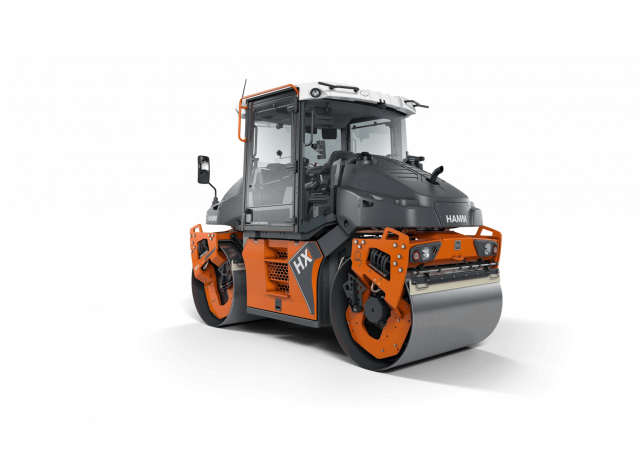

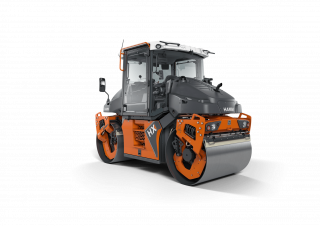

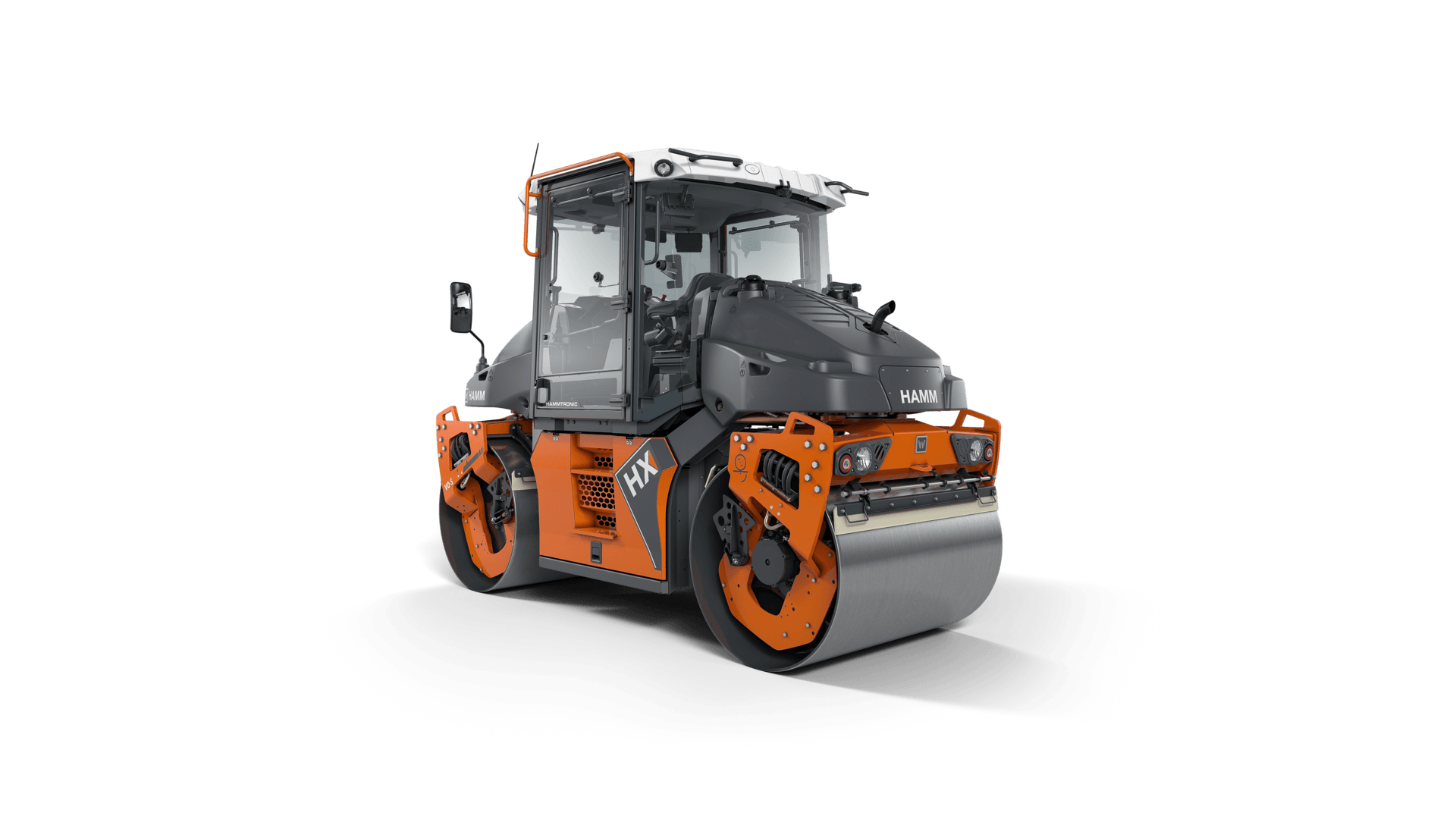

HX 90i VT-S Hamm HX 90i VT-S Specifications & Technical Data (2022—2026)
.png)
.png)
Visit Hamm live at
Technical specs - HX 90i VT-S Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.01 t
- Transport length
- 4.448 m
- Transport width
- 1.86 m
- Transport height
- 2.965 m
- Travel speed
- 11 km/h
- Frequency
- 50 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.2 m
- Statical line load
- 29.5 kg/cm
- Model series
- HX
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 74.4 kW
- No. of cylinders
- 4
- Emission level
- EU Stage V / EPA Tier 4
More technical details, like: vibration, drive, steering, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

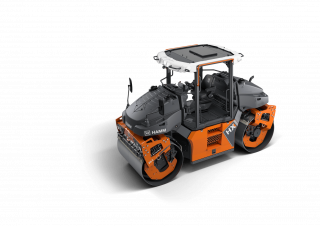

Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Infrared heater
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
Yes
