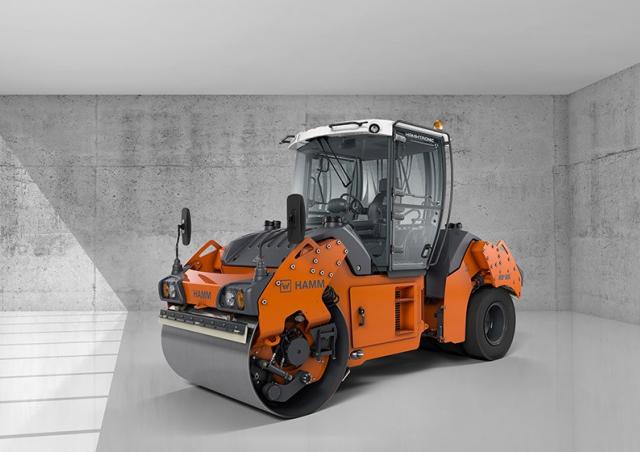

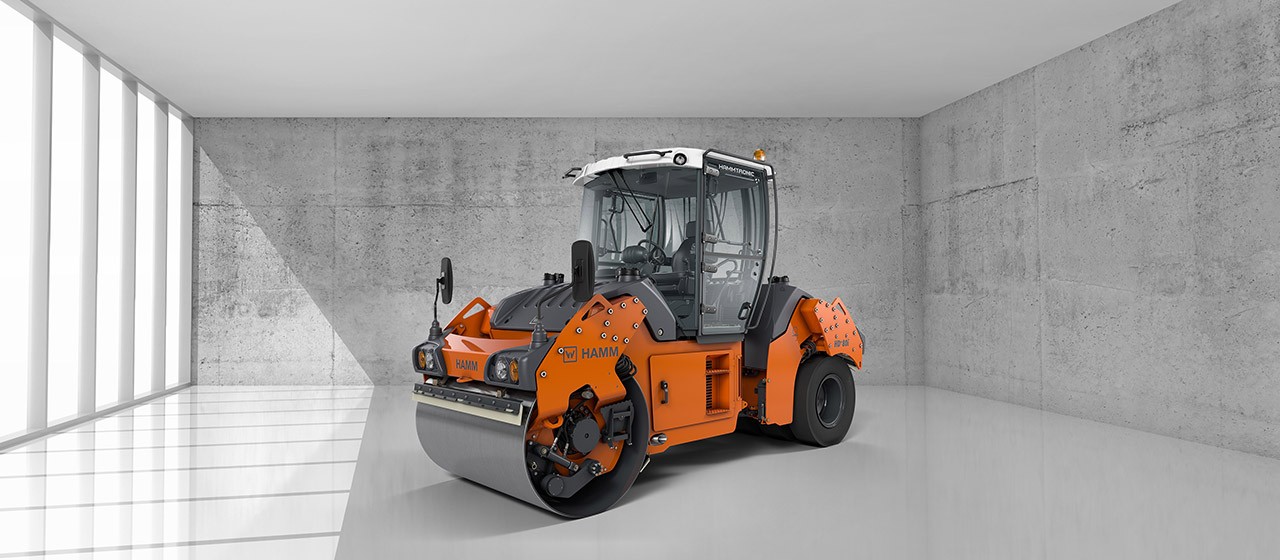

HD+ 80i OT Hamm HD+ 80i OT Specifications & Technical Data (2019—2026)
Visit Hamm live at
Technical specs - HD+ 80i OT Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.46 t
- Transport length
- 4.48 m
- Transport width
- 1.8 m
- Transport height
- 2.89 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Frequency
- 40 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.14 m
- Turning radius outside
- 4.14 m
- Statical line load
- 23.9 kg/cm
- Model series
- HD+
- Engine manuf.
- Deutz
- Engine type
- TD 2.9 L4
- Engine power
- 55.4 kW
- Displacement
- 2.9 l
- Revolutions at max torque
- 2300 rpm
- No. of cylinders
- 4
- Emission level
- Stage 5
More technical details, like: travel speed, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
