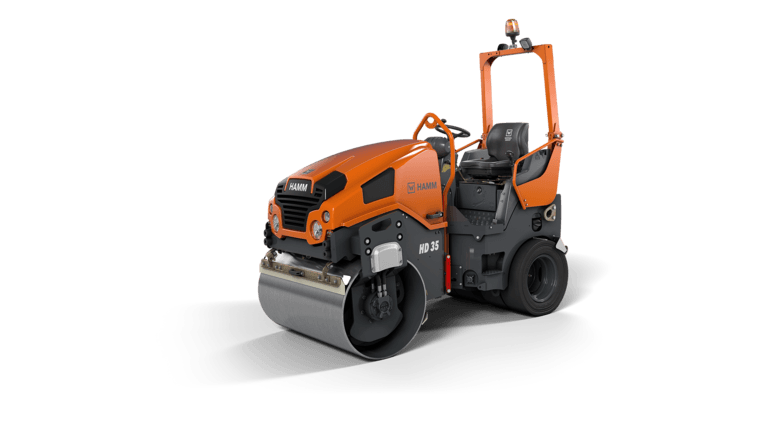

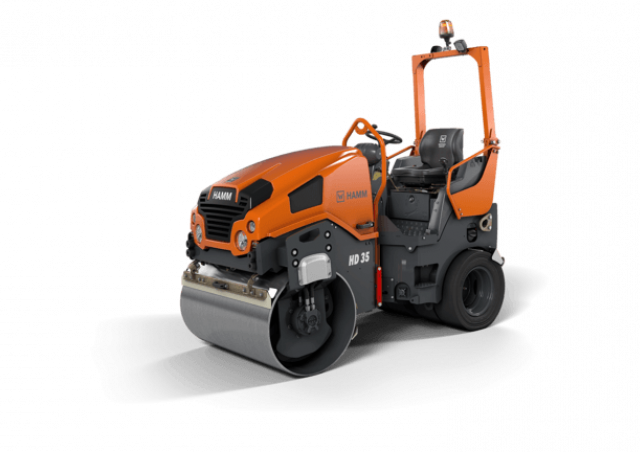

HD 35 VT Hamm HD 35 VT Specifications & Technical Data (2021—2026)
Visit Hamm live at
Technical specs - HD 35 VT Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.595 t
- Transport length
- 2.53 m
- Transport width
- 1.31 m
- Transport height
- 2.391 m
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 67 Hz
- Roller width
- 1.2 m
- Rollers Ø
- 0.72 m
- Statical line load
- 11.2 kg/cm
- Model series
- HD
- Engine manuf.
- Kubota
- Engine type
- D1503
- Engine power
- 22.9 kW
- No. of cylinders
- 3
- Emission level
- MEP III
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Hamm HD 35 VT FAQ
How much does the Hamm HD 35 VT weigh?
What are the transport dimensions of the Hamm HD 35 VT?
What is the travel speed of the Hamm HD 35 VT?
What type of steering does the Hamm HD 35 VT use for maneuverability?
What are the compaction capabilities of the Hamm HD 35 VT?
What are the roller specifications of the Hamm HD 35 VT?
How much is a Hamm HD 35 VT Combination Roller (2021u20132025) worth?
Events
Visit Hamm live at
Machine inspection
Ask for inspection of your Hamm HD 35 VT from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Hamm HD 35 VT with similar Combination Rollers

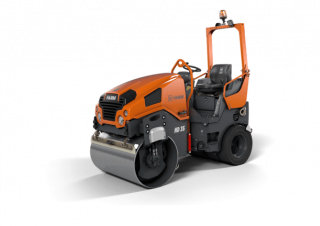

Hamm HD 35 VT
