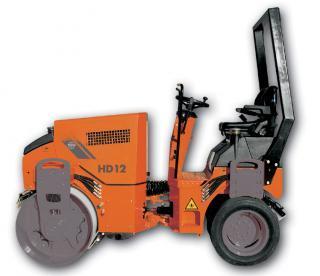

HD 12 K Hamm HD 12 K Specifications & Technical Data (1995—2004)
.jpg)
.jpg)
Visit Hamm live at
Technical specs - HD 12 K Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.65 t
- Transport length
- 2.51 m
- Transport width
- 1.27 m
- Transport height
- 2.35 m
- Vibration
- e
- Steering
- KL
- Model series
- HD
- Engine manuf.
- Deutz
- Engine type
- F2L1011
- Engine power
- 19.5 kW
- Revolutions at max torque
- 1647 rpm
More technical details, like: drive, travel speed, frequency, roller width, rollers Ø, turning radius outside, statical line load, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Hamm HD 12 K FAQ
How much does the Hamm HD 12 K weigh?
What are the transport dimensions of the Hamm HD 12 K?
What type of steering does the Hamm HD 12 K use for maneuverability?
What type of vibration system does the Hamm HD 12 K use for compaction?
How much is a Hamm HD 12 K Combination Roller (1995u20132004) worth?
Events
Visit Hamm live at
Machine inspection
Ask for inspection of your Hamm HD 12 K from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Hamm HD 12 K with similar Combination Rollers
Hamm HD 12 K
- Weight:
- 2.65 t
- Transport length:
- 2.51 m
- Transport width:
- 1.27 m
- Transport height:
- 2.35 m
Dynapac CC 102 C
- Weight:
- 2.4 t
- Transport length:
- 2.39 m
- Transport width:
- 1.15 m
- Transport height:
- 2.6 m
Caterpillar CC24B
- Weight:
- 2.44 t
- Transport length:
- 2.57 m
- Transport width:
- 1.31 m
- Transport height:
- 2.59 m
Bomag BW 100 AC-2
- Weight:
- 2.4 t
- Transport length:
- 2.44 m
- Transport width:
- 1.08 m
- Transport height:
- 2.47 m
Hamm DV 2 K
- Weight:
- 2.5 t
