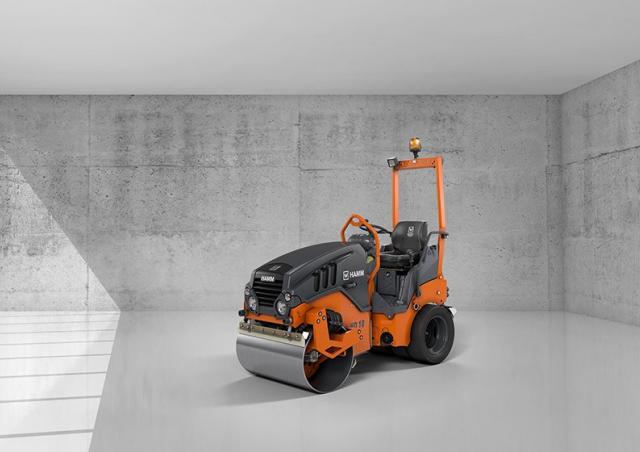

HD 10C VT Hamm HD 10C VT Specifications & Technical Data (2019—2026)
Visit Hamm live at
Technical specs - HD 10C VT Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.63 t
- Transport length
- 2.309 m
- Transport width
- 1.08 m
- Transport height
- 2.21 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 65 Hz
- Roller width
- 1 m
- Rollers Ø
- 0.62 m
- Turning radius outside
- 2.13 m
- Statical line load
- 7.9 kg/cm
- Model series
- HD
- Engine manuf.
- Kubota
- Engine type
- D1005
- Engine power
- 14.8 kW
- Revolutions at max torque
- 2700 rpm
- No. of cylinders
- 3
- Emission level
- Stage 5
More technical details, like: dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
