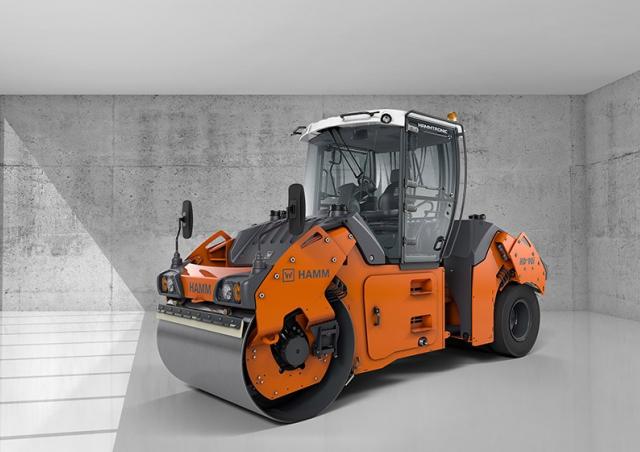

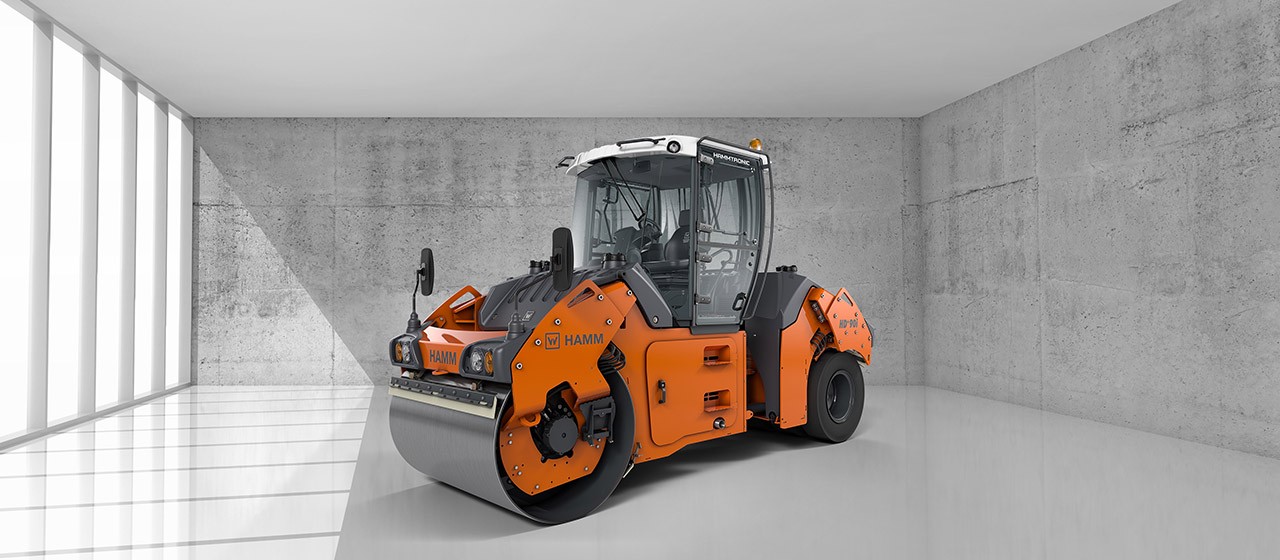

DV+ 90i VT-S Hamm DV+ 90i VT-S Specifications & Technical Data (2019—2021)

Weight: 8.94t – Transport length: 4.44m – Transport width: 1.86m – Transport height: 2.965m – Vibration: e – Drive: A

Visit Hamm live at

Technical specs - DV+ 90i VT-S Hamm

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.94 t
Transport length
4.44 m
Transport width
1.86 m
Transport height
2.965 m
Vibration
e
Drive
A
Steering
KL
Travel speed
11 km/h
Frequency
50 Hz
Roller width
1.68 m
Rollers Ø
1.2 m
Turning radius outside
3 m
Statical line load
28.9 kg/cm
Model series
DV+
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
74.4 kW
Displacement
3.6 l
Revolutions at max torque
1300 rpm
Max. torque
390 Nm
No. of cylinders
4
Emission level
4

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Infrared heater
No
Oscillation
No
Compression control
No
Aircondition
Yes

Download datasheets (PDF)

Hamm DV+ 90i VT-S FAQ

When was the Hamm DV+ 90i VT-S manufactured?

The Hamm DV+ 90i VT-S was manufactured from 2019 to 2021.

How much does the Hamm DV+ 90i VT-S weigh?

The Hamm DV+ 90i VT-S weighs 8.94 tons.

What are the transport dimensions of the Hamm DV+ 90i VT-S?

The Hamm DV+ 90i VT-S has a transport length of 4.44 meters, a transport width of 1.86 meters, and a transport height of 2.97 meters.

What is the travel speed of the Hamm DV+ 90i VT-S?

The Hamm DV+ 90i VT-S has a travel speed of 11 km/h.

What type of drive system does the Hamm DV+ 90i VT-S use in its undercarriage?

The Hamm DV+ 90i VT-S uses an all-wheel drive system in its undercarriage.

What are the maneuverability specifications of the Hamm DV+ 90i VT-S?

The Hamm DV+ 90i VT-S has an outside turning radius of 3 meters and features articulated-frame steering.

What are the vibration system and statical line load specifications of the Hamm DV+ 90i VT-S?

The Hamm DV+ 90i VT-S has a single vibration system operating at a frequency of 50 Hz and a statical line load of 28.9 kg/cm.

What are the roller specifications of the Hamm DV+ 90i VT-S?

The Hamm DV+ 90i VT-S has a roller width of 1.68 meters and roller diameter of 1.2 meters.

How much is a Hamm DV+ 90i VT-S Combination Roller (2019u20132021) worth?

The residual value of the Hamm DV+ 90i VT-S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
