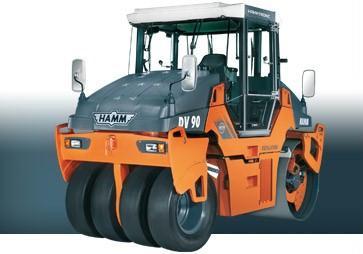

DV 90 TO Hamm DV 90 TO Specifications & Technical Data (2005—2015)
Visit Hamm live at
Technical specs - DV 90 TO Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.73 t
- Transport length
- 4.1 m
- Transport width
- 1.83 m
- Transport height
- 2.98 m
- Vibration
- e
- Drive
- A
- Steering
- AL
- Travel speed
- 12 km/h
- Frequency
- 42 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.2 m
- Turning radius outside
- 2.59 m
- Statical line load
- 27.1 kg/cm
- Model series
- DV
- Engine manuf.
- Deutz
- Engine type
- BF4M2012
- Engine power
- 74.9 kW
- Displacement
- 3.4 l
- Emission level
- Tier 4
More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
