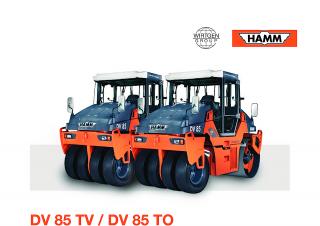

DV 85 TO Hamm DV 85 TO Specifications & Technical Data (2010—2015)

Weight: 8.73t – Transport length: 4.1m – Transport width: 1.82m – Transport height: 2.98m – Drive: E – Steering: AL

Rollers Combination Rollers Hamm DV 85 TO

Visit Hamm live at

Technical specs - DV 85 TO Hamm

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.73 t
Transport length
4.1 m
Transport width
1.82 m
Transport height
2.98 m
Drive
E
Steering
AL
Travel speed
12 km/h
Frequency
39 Hz
Roller width
2.96 m
Rollers Ø
1.2 m
Turning radius outside
2.59 m
Statical line load
27.1 kg/cm
Model series
DV
Engine manuf.
Deutz
Engine type
TCD2012 L04 2V
Engine power
74.9 kW
Revolutions at max torque
2400 rpm

More technical details, like: vibration, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Infrared heater
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Hamm DV 85 TO FAQ

When was the Hamm DV 85 TO manufactured?

The Hamm DV 85 TO was manufactured from 2010 to 2015.

How much does the Hamm DV 85 TO weigh?

The Hamm DV 85 TO weighs 8.73 tons.

What are the transport dimensions of the Hamm DV 85 TO?

The Hamm DV 85 TO has a transport length of 4.1 meters, a transport width of 1.82 meters, and a transport height of 2.98 meters.

What is the travel speed of the Hamm DV 85 TO?

The Hamm DV 85 TO has a travel speed of 12 km/h.

What is the undercarriage drive type of the Hamm DV 85 TO?

The Hamm DV 85 TO has a simple drive.

What are the maneuverability specifications of the Hamm DV 85 TO?

The Hamm DV 85 TO has an outside turning radius of 2.59 meters and features all-wheel steering.

What are the frequency and statical line load specifications of the Hamm DV 85 TO?

The Hamm DV 85 TO operates at a frequency of 39 Hz and has a Statical line load of 27.1 kg/cm.

What are the roller specifications of the Hamm DV 85 TO?

The Hamm DV 85 TO has a roller width of 2.96 meters and roller diameters of 1.2 meters.

How much is a Hamm DV 85 TO Combination Roller (2010u20132015) worth?

The residual value of the Hamm DV 85 TO depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hamm DV 85 TO overview

Vibration and sprinkler system

Cabin Features

Spacious panoramic cabin providing good visibility and clear view of drumsSteering wheel, indicator display with graphics displayOscillation and vibration can be selected separately; adjustable for front and rear drumsPrecise adjustment of water sprinkler systemDouble-sided large maintenance doors and engine lowering system
