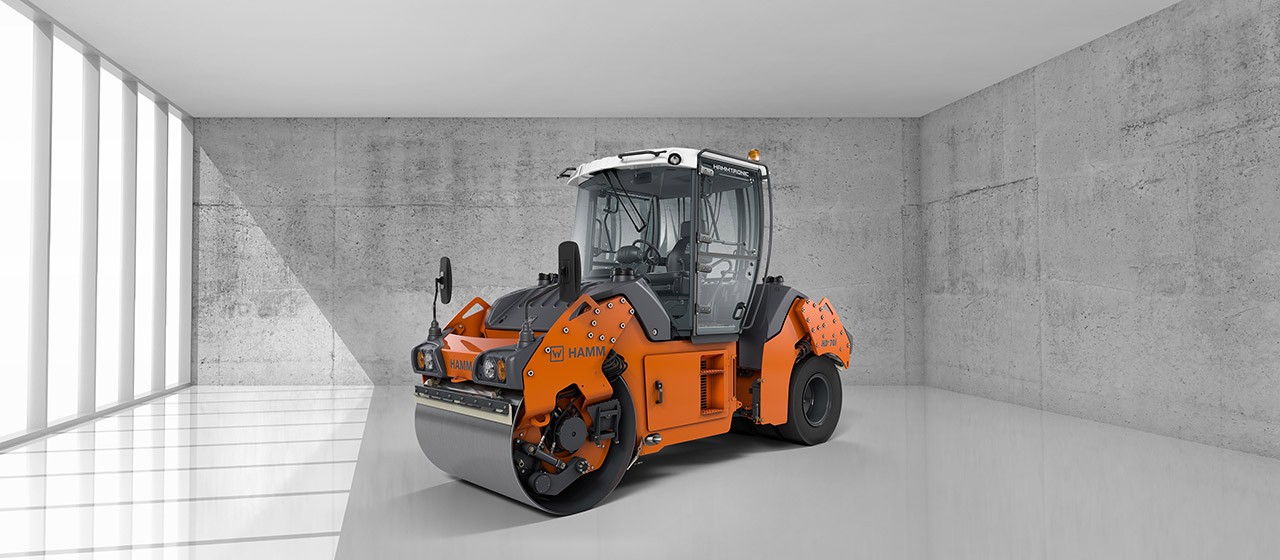

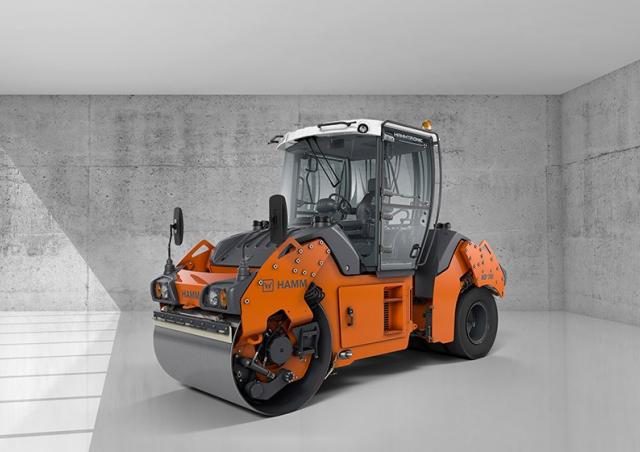

DV+ 70i VT-S Hamm DV+ 70i VT-S Specifications & Technical Data (2019—2026)
Visit Hamm live at
Technical specs - DV+ 70i VT-S Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.59 t
- Transport length
- 4.14 m
- Transport width
- 1.6 m
- Transport height
- 2.96 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 50 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 1.14 m
- Statical line load
- 26.2 kg/cm
- Model series
- DV+
- Engine manuf.
- Kubota
- Engine type
- V3307CR-T
- Engine power
- 55.4 kW
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
- Emission level
- Stage V
More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
Hamm DV+ 70i VT-S FAQ
How much does the Hamm DV+ 70i VT-S weigh?
What are the transport dimensions of the Hamm DV+ 70i VT-S?
What is the travel speed of the Hamm DV+ 70i VT-S?
What type of undercarriage drive does the Hamm DV+ 70i VT-S have?
What type of steering does the Hamm DV+ 70i VT-S use for maneuverability?
What are the compaction capabilities of the Hamm DV+ 70i VT-S?
What are the roller specifications of the Hamm DV+ 70i VT-S?
How much is a Hamm DV+ 70i VT-S Combination Roller (2019u20132025) worth?
