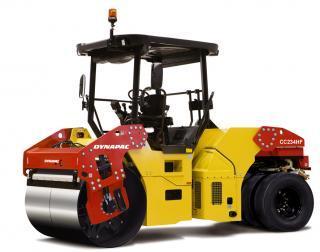

CC 234 C HF Dynapac CC 234 C HF Specifications & Technical Data (2010—2014)

Weight: 7.6t – Transport length: 4.49m – Transport width: 1.62m – Transport height: 2.99m – Vibration: d – Steering: KL

Rollers Combination Rollers Dynapac CC 234 C HF

Visit Dynapac live at

Technical specs - CC 234 C HF Dynapac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.6 t
Transport length
4.49 m
Transport width
1.62 m
Transport height
2.99 m
Vibration
d
Steering
KL
Travel speed
11 km/h
Frequency
62 Hz
Roller width
1.5 m
Rollers Ø
1.15 m
Turning radius outside
5.224 m
Statical line load
27 kg/cm
Model series
CC
Engine manuf.
Cummins
Engine type
QSB3.3
Engine power
60 kW
Displacement
3.3 l
Revolutions at max torque
2200 rpm
Emission level
T3

More technical details, like: drive, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Infrared heater
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Dynapac CC 234 C HF FAQ

When was the Dynapac CC 234 C HF manufactured?

The Dynapac CC 234 C HF was manufactured from 2010 to 2014.

How much does the Dynapac CC 234 C HF weigh?

The Dynapac CC 234 C HF weighs 7.6 tons.

What are the transport dimensions of the Dynapac CC 234 C HF?

The Dynapac CC 234 C HF has a transport length of 4.49 meters, a transport width of 1.62 meters, and a transport height of 2.99 meters.

What is the travel speed of the Dynapac CC 234 C HF?

The Dynapac CC 234 C HF has a travel speed of 11 km/h.

What are the maneuverability specifications of the Dynapac CC 234 C HF?

The Dynapac CC 234 C HF has an articulated-frame steering system and an outside turning radius of 5.224 meters.

What are the compaction capabilities of the Dynapac CC 234 C HF?

The Dynapac CC 234 C HF features a double vibration system, operates at a frequency of 62 Hz, and has a statical line load of 27 kg/cm.

What are the roller specifications of the Dynapac CC 234 C HF?

The Dynapac CC 234 C HF has rollers that are 1.5 meters wide with a diameter of 1.15 meters.

How much is a Dynapac CC 234 C HF Combination Roller (2010u20132014) worth?

The residual value of the Dynapac CC 234 C HF depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
