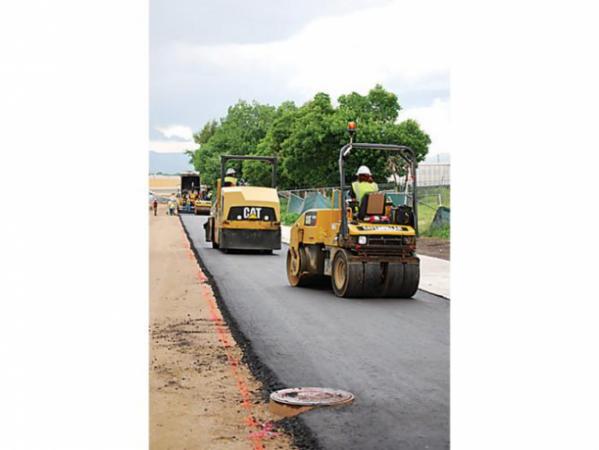

CC34 Caterpillar CC34 Specifications & Technical Data (2008—2013)
Technical specs - CC34 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.67 t
- Transport length
- 3.12 m
- Transport width
- 1.39 m
- Transport height
- 2.557 m
- Vibration
- d
- Drive
- E
- Steering
- KL
- Travel speed
- 12.5 km/h
- Frequency
- 61 Hz
- Roller width
- 1.3 m
- Rollers Ø
- 0.8 m
- Turning radius outside
- 4.3 m
- Statical line load
- 15 kg/cm
- Model series
- CC
- Engine manuf.
- Caterpillar
- Engine type
- C2.2
- Engine power
- 34.1 kW
- Emission level
- Tier 4 i
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
