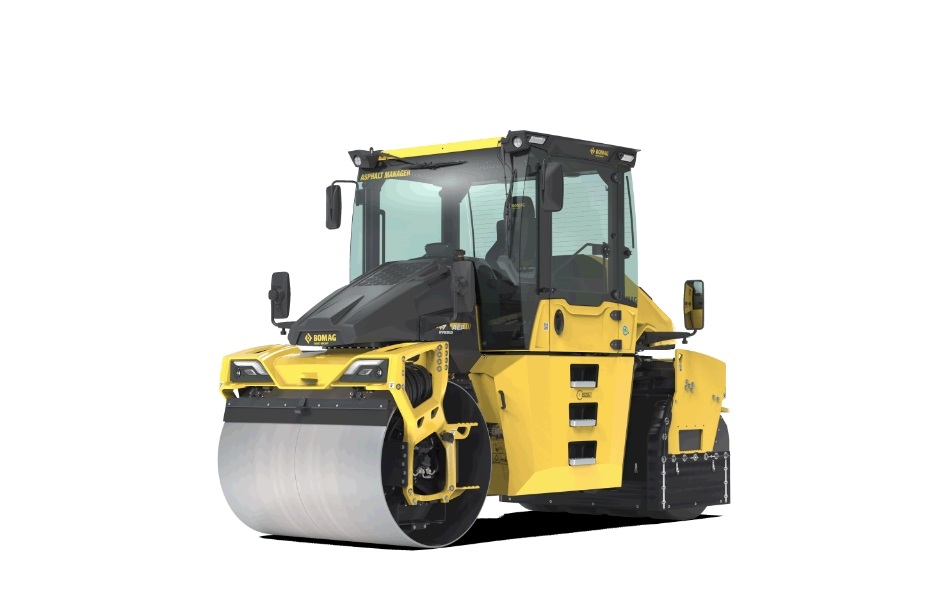

BW 174 ACP-5 Bomag BW 174 ACP-5 Specifications & Technical Data (2022—2026)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 174 ACP-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9 t
- Transport length
- 4.42 m
- Transport width
- 1.86 m
- Transport height
- 3.05 m
- Vibration
- e
- Drive
- A
- Steering
- DSL
- Travel speed
- 11 km/h
- Frequency
- 60 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.22 m
- Statical line load
- 27.4 kg/cm
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 74.4 kW
- Displacement
- 3.6 l
- No. of cylinders
- 4
- Emission level
- V/Tier 4f
More technical details, like: turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

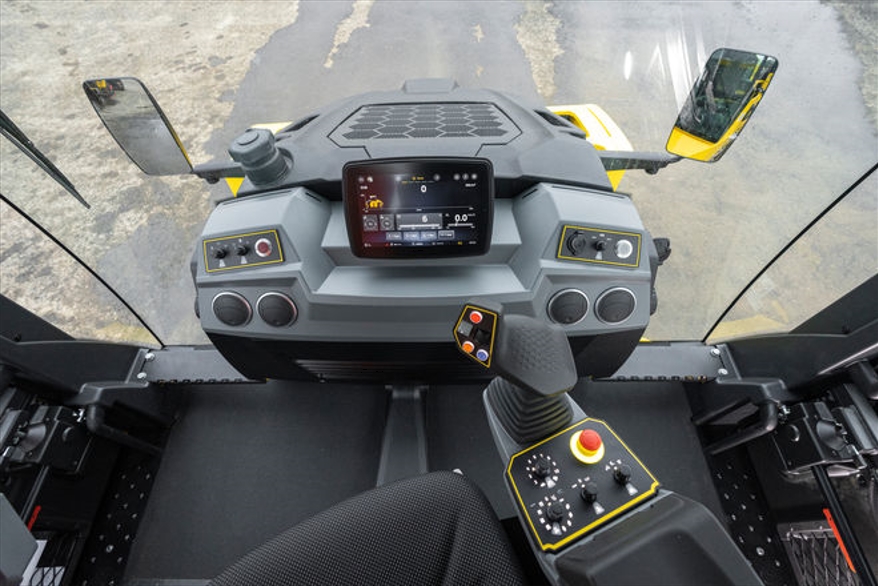

Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Bomag BW 174 ACP-5 FAQ
What is the weight of the Bomag BW 174 ACP-5?
What are the transport dimensions of the Bomag BW 174 ACP-5?
What is the travel speed of the Bomag BW 174 ACP-5?
What type of undercarriage drive does the Bomag BW 174 ACP-5 have?
What type of steering system does the Bomag BW 174 ACP-5 use for maneuverability?
What are the compaction capabilities of the Bomag BW 174 ACP-5?
What are the roller specifications of the Bomag BW 174 ACP-5?
How much is a Bomag BW 174 ACP-5 Combination Roller (2022u20132025) worth?
