BW 100 AC-5 Bomag BW 100 AC-5 Specifications & Technical Data (2015—2026)

Weight: 2.5t – Transport length: 2.53m – Transport width: 1.07m – Transport height: 1.81m – Vibration: d – Drive: A

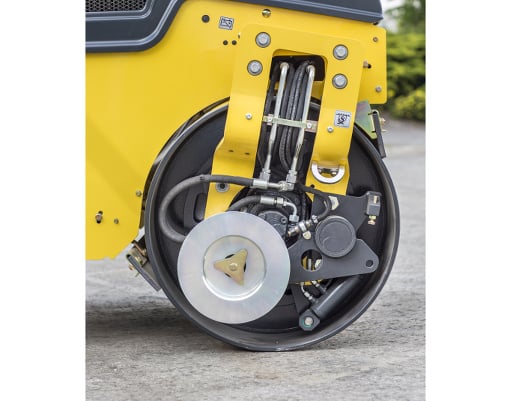

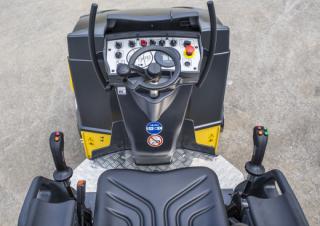

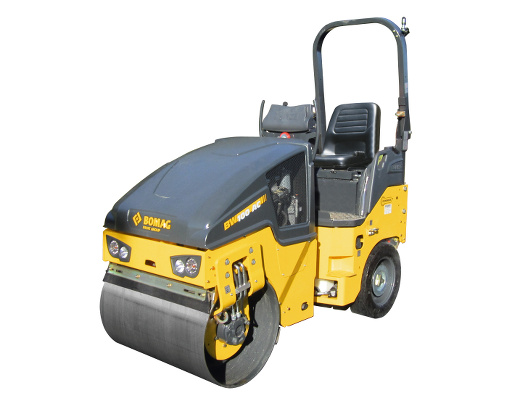

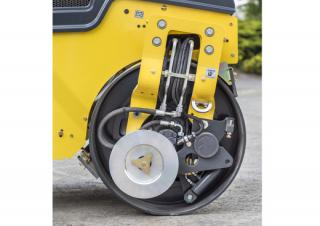

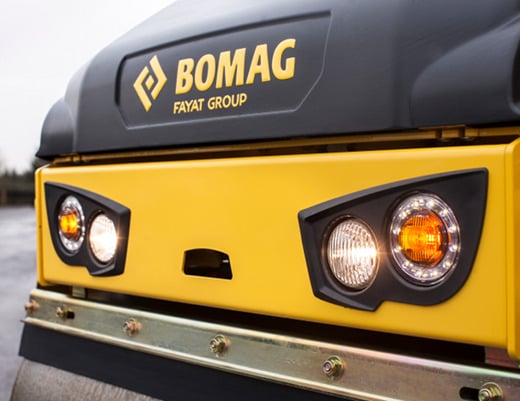

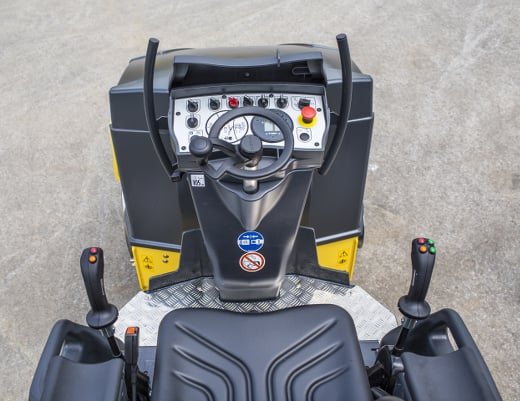

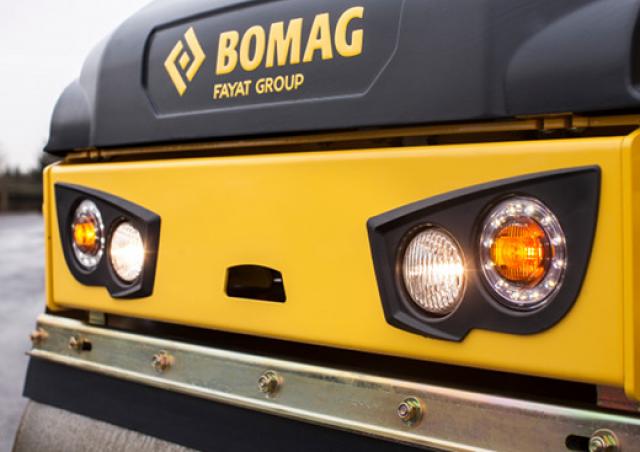

Rollers Combination Rollers Bomag BW 100 AC-5
Rollers Combination Rollers Bomag BW 100 AC-5
Rollers Combination Rollers Bomag BW 100 AC-5
Rollers Combination Rollers Bomag BW 100 AC-5
Rollers Combination Rollers Bomag BW 100 AC-5
Rollers Combination Rollers Bomag BW 100 AC-5
Rollers Combination Rollers Bomag BW 100 AC-5
Rollers Combination Rollers Bomag BW 100 AC-5

Visit Bomag live at

Technical specs - BW 100 AC-5 Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.5 t
Transport length
2.53 m
Transport width
1.07 m
Transport height
1.81 m
Vibration
d
Drive
A
Steering
KL
Travel speed
10 km/h
Frequency
67 Hz
Roller width
1 m
Rollers Ø
0.7 m
Turning radius outside
2.55 m
Statical line load
12.2 kg/cm
Model series
BW
Engine manuf.
Kubota
Engine type
D1803
Engine power
24.6 kW
Revolutions at max torque
2600 rpm

More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
Yes
Infrared heater
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Bomag BW 100 AC-5 FAQ

When was the Bomag BW 100 AC-5 manufactured?

The Bomag BW 100 AC-5 was first produced in 2015.

What is the weight of the Bomag BW 100 AC-5 combination roller?

The Bomag BW 100 AC-5 combination roller weighs 2.5 tons.

What are the transport dimensions of the Bomag BW 100 AC-5?

The Bomag BW 100 AC-5 has a transport length of 2.53 meters, a transport width of 1.07 meters, and a transport height of 1.81 meters.

What is the travel speed of the Bomag BW 100 AC-5?

The Bomag BW 100 AC-5 has a travel speed of 10 km/h.

What type of undercarriage drive does the Bomag BW 100 AC-5 have?

The Bomag BW 100 AC-5 has an all-wheel drive undercarriage.

What are the maneuverability specifications of the Bomag BW 100 AC-5?

The Bomag BW 100 AC-5 has an articulated-frame steering system and an outside turning radius of 2.55 meters.

What are the compaction capabilities of the Bomag BW 100 AC-5?

The Bomag BW 100 AC-5 features a double vibration system, operates at a frequency of 67 Hz, and has a statical line load of 12.2 kg/cm.

What are the roller specifications of the Bomag BW 100 AC-5?

The Bomag BW 100 AC-5 has rollers that are 1 meter wide with a diameter of 0.7 meters.

How much is a Bomag BW 100 AC-5 Combination Roller (2015u20132025) worth?

The residual value of the Bomag BW 100 AC-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
