ARX 26-2C Ammann ARX 26-2C Specifications & Technical Data (2021—2026)

Weight: 4.62t – Transport length: 2.92m – Transport width: 1.46m – Transport height: 2.15m – Steering: KL – Travel speed: 10km/h

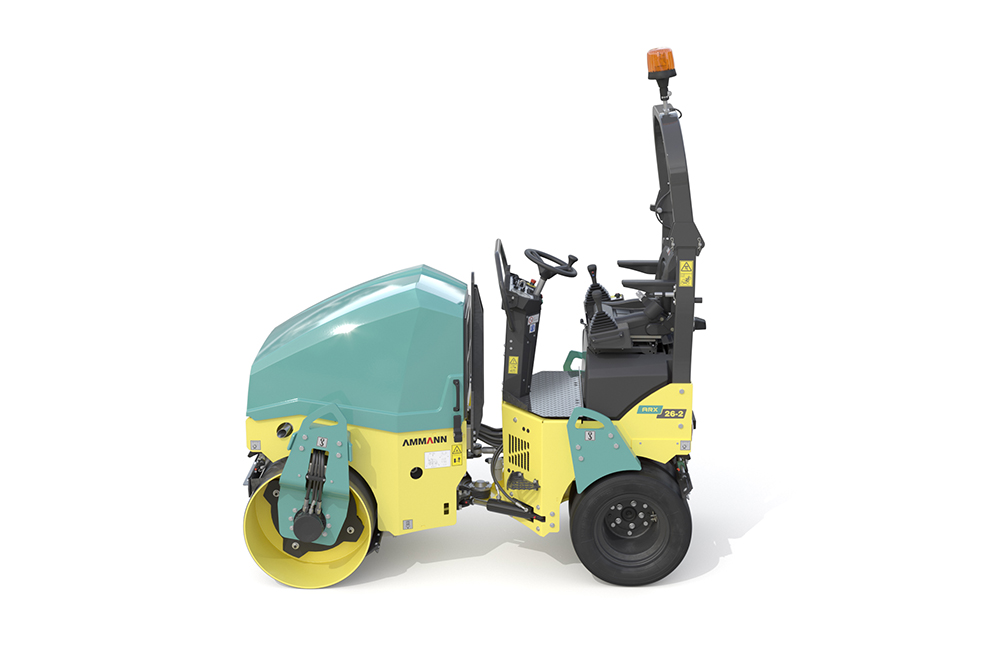

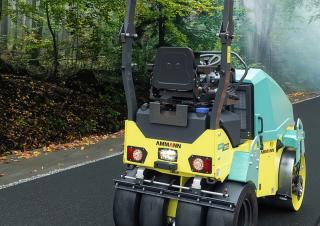

Rollers Combination Rollers Ammann ARX 26-2C

ARX 26-2C

Years of manufacture: 2021—2026

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 26-2C Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.62 t

Transport length: 2.92 m

Transport width: 1.46 m

Transport height: 2.15 m

Steering: KL

Travel speed: 10 km/h

Frequency: 41 Hz

Roller width: 1.38 m

Rollers Ø: 0.85 m

Statical line load: 17.4 kg/cm

Model series: ARX

Engine manuf.: Kubota

Engine type: D1803-CR

Engine power: 25 kW

No. of cylinders: 3

Emission level: EU V

More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Oscillation: No
Compression control: Yes
Aircondition: No

Download datasheets (PDF)

Ammann ARX 26-2C FAQ

When was the Ammann ARX 26-2C manufactured?

The Ammann ARX 26-2C was first produced in 2021.

How much does the Ammann ARX 26-2C weigh?

The Ammann ARX 26-2C weighs 4.62 tons.

What are the transport dimensions of the Ammann ARX 26-2C?

The Ammann ARX 26-2C has a transport length of 2.92 meters, a transport width of 1.46 meters, and a transport height of 2.15 meters.

What is the travel speed of the Ammann ARX 26-2C?

The Ammann ARX 26-2C has a travel speed of 10 km/h.

What type of steering does the Ammann ARX 26-2C use for maneuverability?

The Ammann ARX 26-2C uses articulated-frame steering for maneuverability.

What are the vibration frequency and statical line load of the Ammann ARX 26-2C?

The Ammann ARX 26-2C operates at a vibration frequency of 41 Hz and has a statical line load of 17.4 kg/cm.

What are the roller specifications of the Ammann ARX 26-2C?

The Ammann ARX 26-2C has rollers that are 1.38 meters wide with a diameter of 0.85 meters.

How much is a Ammann ARX 26-2C Combination Roller (2021u20132025) worth?

The residual value of the Ammann ARX 26-2C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
