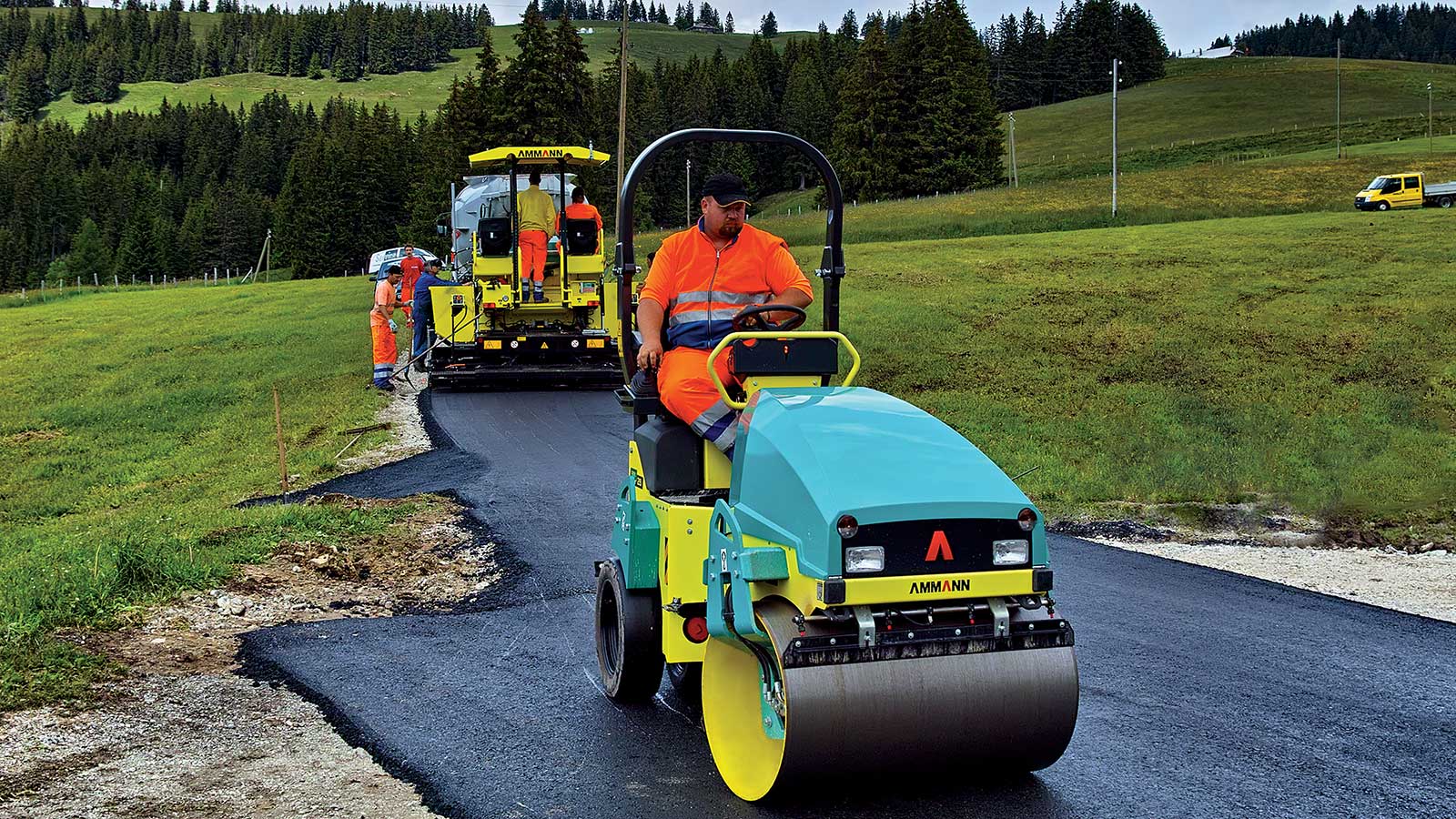

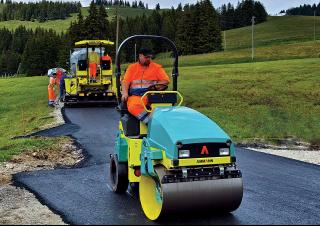

ARX 23 K Ammann ARX 23 K Specifications & Technical Data (2013—2021)
.jpg)
.jpg)
Technical specs - ARX 23 K Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.04 t
- Transport length
- 2.33 m
- Transport width
- 1.04 m
- Transport height
- 2.1 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 66 Hz
- Roller width
- 1 m
- Rollers Ø
- 0.7 m
- Turning radius outside
- 2.25 m
- Statical line load
- 11.3 kg/cm
- Model series
- Light Tandem Rollers
- Engine manuf.
- Yanmar
- Engine type
- 3TNV88
- Engine power
- 20.4 kW
- Displacement
- 1.642 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 106/1200 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 88x90 mm
- Emission level
- IIIA
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Download datasheets (PDF)
Ammann ARX 23 K FAQ
How much does the Ammann ARX 23 K weigh?
What are the transport dimensions of the Ammann ARX 23 K?
What is the travel speed of the Ammann ARX 23 K?
What type of drive system does the Ammann ARX 23 K have in its undercarriage?
What are the maneuverability specifications of the Ammann ARX 23 K?
What are the compaction capabilities of the Ammann ARX 23 K?
What are the roller specifications of the Ammann ARX 23 K?
How much is a Ammann ARX 23 K Combination Roller (2013u20132021) worth?
Machine inspection
Ask for inspection of your Ammann ARX 23 K from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Ammann ARX 23 K with similar Combination Rollers
.jpg)

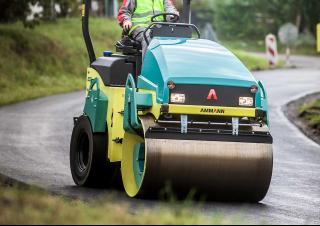

Ammann ARX 23 K
