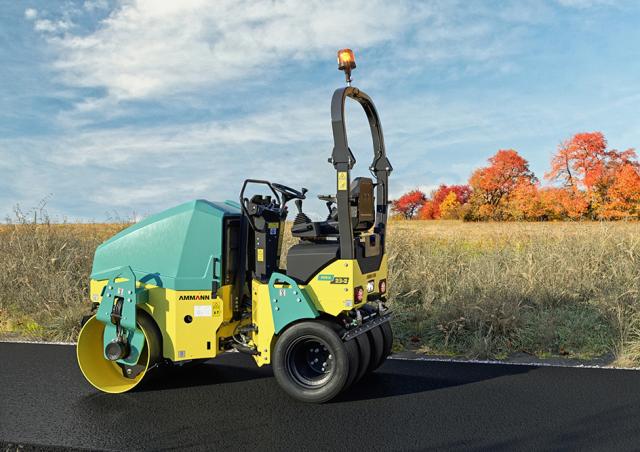

ARX 23-2C Ammann ARX 23-2C Specifications & Technical Data (2021—2026)
Technical specs - ARX 23-2C Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.36 t
- Transport length
- 2.92 m
- Transport width
- 1.39 m
- Transport height
- 2.15 m
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 41 Hz
- Roller width
- 1.3 m
- Rollers Ø
- 0.85 m
- Statical line load
- 16.2 kg/cm
- Model series
- ARX
- Engine manuf.
- Kubota
- Engine type
- D1803-CR
- Engine power
- 25 kW
- No. of cylinders
- 3
- Emission level
- EU V
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Download datasheets (PDF)
Ammann ARX 23-2C FAQ
How much does the Ammann ARX 23-2C weigh?
What are the transport dimensions of the Ammann ARX 23-2C?
What is the travel speed of the Ammann ARX 23-2C?
What type of steering system does the Ammann ARX 23-2C use for maneuverability?
What are the compaction capabilities of the Ammann ARX 23-2C?
What are the roller specifications of the Ammann ARX 23-2C?
