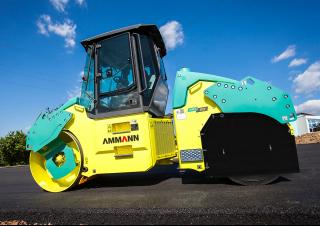

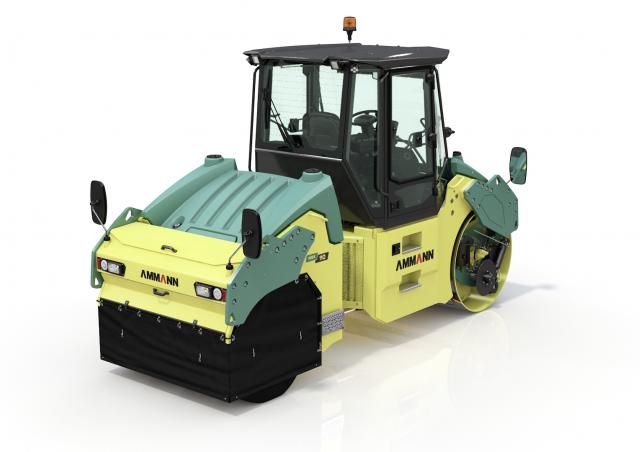

ARX 110 C Ammann ARX 110 C Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - ARX 110 C Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.34 t
- Transport length
- 4.72 m
- Transport width
- 1.8 m
- Transport height
- 3 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 10.5 km/h
- Frequency
- 54 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.22 m
- Statical line load
- 31.2 kg/cm
- Model series
- ARX
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 19 kW
- Displacement
- 1.826 l
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 3
- Emission level
- EU V
More technical details, like: turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Infrared heater
-
No
- Oscillation
-
Yes
- Compression control
-
Yes
- Aircondition
-
Yes
