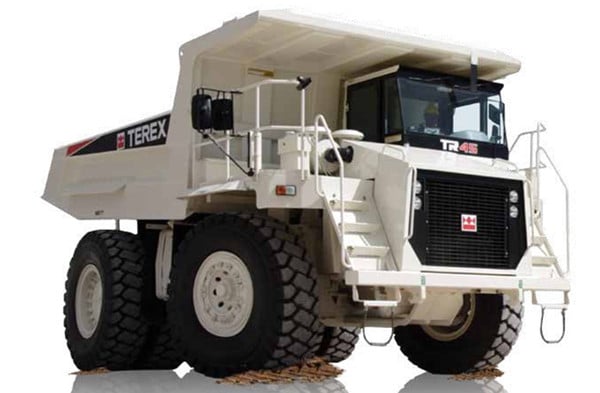

TR 45 Terex TR 45 Specifications & Technical Data (1998—2017)

Weight: 37.14t – Standard tyres: 2100 -35 – Dump capacity: 26m³ – Net load: 40.83t – Steering: VL – Transport length: 8.7m

TR 45

Years of manufacture: 1998—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TR 45 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 37.14 t

Standard tyres: 2100 -35

Dump capacity: 26 m³

Net load: 40.83 t

Steering: VL

Transport length: 8.7 m

Transport width: 4 m

Transport height: 4.25 m

Travel speed: 65 km/h

Turning radius outside: 9.48 m

Loading height: 3 m

Model series: TR

Engine manuf.: Cummins

Engine type: QSK19C

Engine power: 392 kW

Displacement: 18.2 l

Revolutions at max torque: 1400 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, engine manufacturer, engine model, aspiration, engine output - net, engine output - gross, transmission type, drive configuration, final drive, tyre size, retarder - type, length - overall, height - max, height - over canopy / rock guard rail, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, width - over body, hoist - angle, fuel tank, engine oil, cooling system, transmission - system, body type, struck capacity, heaped capacity, gears - forward / reverse, speed - forward maximum, chassis with hoist, body weight, net weight, payload, gross weight, payload - highest possible are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: Yes
Tailgate: No
Aircondition: Yes

Download datasheets (PDF)

Terex TR 45 FAQ

When was the Terex TR 45 manufactured?

The Terex TR 45 was manufactured from 1998 to 2017.

How much does the Terex TR 45 rigid dump truck weigh?

The Terex TR 45 rigid dump truck weighs 37.14 tons.

What are the transport dimensions of the Terex TR 45 rigid dump truck?

The Terex TR 45 has a transport length of 8.7 meters, a transport width of 4 meters, and a transport height of 4.25 meters.

What is the travel speed of the Terex TR 45 rigid dump truck?

The Terex TR 45 has a travel speed of 65 km/h.

What are the standard tyres of the Terex TR 45 rigid dump truck?

The Terex TR 45 rigid dump truck is equipped with standard tyres sized 2100 -35.

What are the maneuverability specifications of the Terex TR 45 rigid dump truck?

The Terex TR 45 has a front steering system and an outside turning radius of 9.48 meters.

What is the material handling capacity of the Terex TR 45 rigid dump truck?

The Terex TR 45 has a net load capacity of 40.83 tons, a dump capacity of 26 cubic meters, and a loading height of 3 meters.

How much is a Terex TR 45 Rigid dump truck (1998u20132017) worth?

The residual value of the Terex TR 45 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
