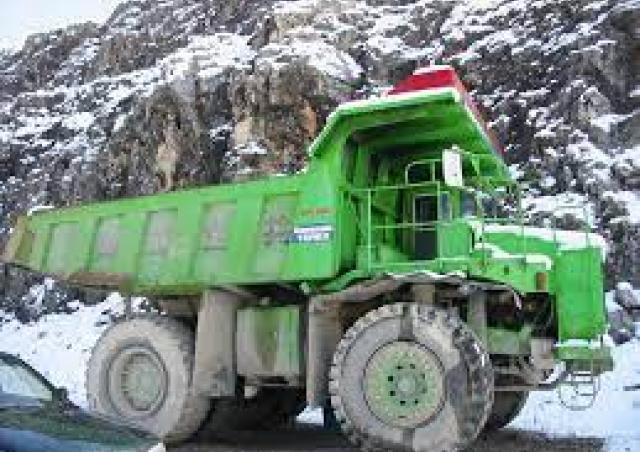

3308E Terex 3308E Specifications & Technical Data (1990—1996)
Technical specs - 3308E Terex
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 37.1 t
- Standard tyres
- 21.00 R35
- Dump capacity
- 30.5 m³
- Net load
- 50 t
- Steering
- KL
- Transport length
- 8.74 m
- Transport width
- 3.94 m
- Transport height
- 4.35 m
- Loading height
- 3.63 m
- Engine manuf.
- Cummins
- Engine type
- KTA-19C
- Engine power
- 447 kW
- Displacement
- 18.9 l
- Revolutions at max torque
- 2100 rpm
- Max. torque
- 2237 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 159x159 mm
More technical details, like: travel speed, turning radius outside, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
