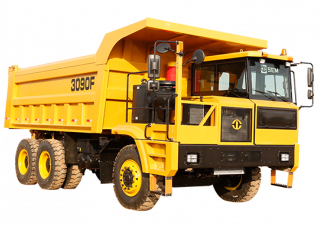

3090F SEM 3090F Specifications & Technical Data (2026—2026)

Weight: 31.6t – Standard tyres: 14.00-25 – Dump capacity: 32m³ – Net load: 60t – Transport length: 8.858m – Transport width: 3.48m

Technical specs - 3090F SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.6 t
Standard tyres
14.00-25
Dump capacity
32 m³
Net load
60 t
Transport length
8.858 m
Transport width
3.48 m
Transport height
3.864 m
Travel speed
40 km/h
Loading height
3.485 m
Model series
F
Engine manuf.
Weichai
Engine type
WP12G460E310
Engine power
338 kW
Displacement
11.6 l
Emission level
Tier 3

More technical details, like: steering, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No
