DW105A Liugong DW105A Specifications & Technical Data (2024—2026)

Weight: 36t – Standard tyres: 16.00R25 – Dump capacity: 36m³ – Net load: 70t – Transport length: 10.08m – Transport width: 3.62m

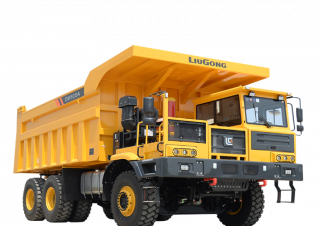

Rigid Dump Trucks Liugong DW105A

Visit Liugong live at

Technical specs - DW105A Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36 t
Standard tyres
16.00R25
Dump capacity
36 m³
Net load
70 t
Transport length
10.08 m
Transport width
3.62 m
Transport height
4.01 m
Travel speed
37 km/h
Loading height
3.59 m
Model series
A
Engine manuf.
Yuchai
Engine type
YC6K520-GT30
Engine power
382 kW
Displacement
12.939 l
Revolutions at max torque
1500 rpm
Max. torque
2400 Nm
No. of cylinders
6
Emission level
Tier 3/Stage III

More technical details, like: steering, turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download datasheets (PDF)
