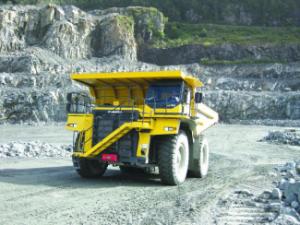

    Komatsu HD785-7 Specifications & Technical Data (2006-2019)

    10,00/10 Rate this machine now!

    Weight: 72.6t – Standard tyres: 27.00 R 49 – Dump capacity: 40m³ – Net load: 91t – Steering: VL – Transport length: 11.015m

    Technical specs - HD785-7 Komatsu

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 72.6 t
    • Standard tyres 27.00 R 49
    • Dump capacity 40 m³
    • Net load 91 t
    • Steering VL
    • Transport length 11.015 m
    • Transport width 5.53 m
    • Transport height 5.05 m
    • Travel speed 65 km/h
    • Turning radius outside 10.1 m
    • Loading height 4.3 m
    • Engine manuf. Komatsu
    • Engine type SA12V140
    • Engine power 879 kW
    • Displacement 30.48 l
    • Revolutions at max torque 1900 rpm
    • No. of cylinders 12
    • Cylinder bore x stroke 140x165 mm

    More technical details, like: dimension lxwxh, max. torque, emission level are available in the full technical specs.

    Basic model with ROPS cabin and std. trough

    Special equipment

    • Diesel particulate filter
    • Central lubrication
    • Heated dump body
    • Tailgate
    • Aircondition
