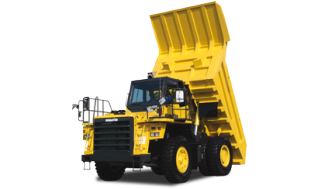

Komatsu HD405-7 Specifications & Technical Data (2006-2016)

Technical specs - HD405-7 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 34.1 t

Standard tyres: 18.00 R 33

Dump capacity: 27.3 m³

Net load: 40 t

Steering: VL

Transport length: 8.8 m

Transport width: 4.3 m

Transport height: 4.8 m

Travel speed: 70 km/h

Turning radius outside: 7.2 m

Loading height: 3.4 m

Model series: HD

Engine manuf.: Komatsu

Engine type: SAA6D140E

Engine power: 386 kW

Displacement: 15.24 l

Revolutions at max torque: 2000 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, decent control, telematics available, platform, engine manufacturer, engine model...

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, decent control, telematics available, platform, engine manufacturer, engine model, aspiration, cooling, engine output - net, engine output - gross, transmission type, drive configuration, final drive, speeds - forward, speeds - reverse, tyre size, retarder - type, length - overall, height - max, height - over canopy / rock guard rail, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, width - over body, hoist - angle, fuel tank, engine oil, transmission - system, body type, struck capacity, heaped capacity, retardation system - 1, gears - forward / reverse, speed - forward maximum, net weight, payload, gross weight, payload - highest possible are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: Yes
Tailgate: No
Aircondition: Yes

Download datasheets (PDF)

Komatsu HD405-7 FAQ

When was the Komatsu HD405-7 manufactured?

The Komatsu HD405-7 was manufactured from 2006 to 2016.

How much does the Komatsu HD405-7 weigh?

The Komatsu HD405-7 weighs 34.1 tons.

What are the transport dimensions of the Komatsu HD405-7 rigid dump truck?

The Komatsu HD405-7 has a transport length of 8.8 meters, a transport width of 4.3 meters, and a transport height of 4.8 meters.

What is the travel speed of the Komatsu HD405-7 rigid dump truck?

The Komatsu HD405-7 has a travel speed of 70 km/h.

What is the size of the standard tyres on the Komatsu HD405-7 rigid dump truck?

The Komatsu HD405-7 is equipped with standard tyres sized 18.00 R 33.

What are the maneuverability specifications of the Komatsu HD405-7 rigid dump truck?

The Komatsu HD405-7 has a front steering system and an outside turning radius of 7.2 meters.

What is the material handling capacity of the Komatsu HD405-7 rigid dump truck?

The Komatsu HD405-7 has a net load capacity of 40 tons, a dump capacity of 27.3 cubic meters, and a loading height of 3.4 meters.

How much is a Komatsu HD405-7 Rigid dump truck (2006u20132016) worth?

The residual value of the Komatsu HD405-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
