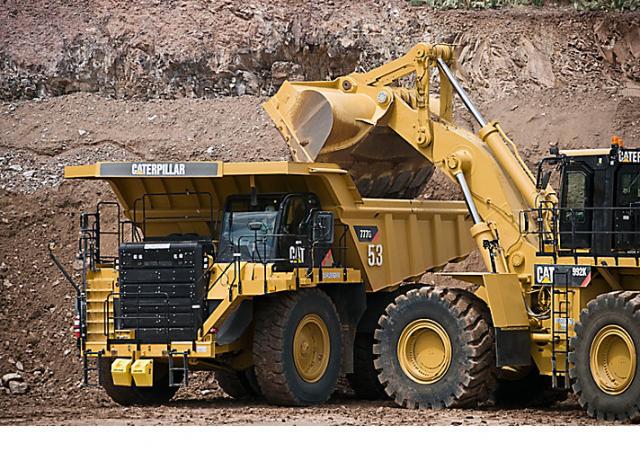

777G Caterpillar 777G Specifications & Technical Data (2017—2026)

Weight: 73.85t – Standard tyres: 27.00R49 – Dump capacity: 60.1m³ – Net load: 90.8t – Transport length: 10.53m – Transport width: 6.2m

777G

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 777G Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 73.85 t

Standard tyres: 27.00R49

Dump capacity: 60.1 m³

Net load: 90.8 t

Transport length: 10.53 m

Transport width: 6.2 m

Transport height: 5.2 m

Travel speed: 67.1 km/h

Loading height: 4.38 m

Engine manuf.: Caterpillar

Engine type: C32 Acert

Engine power: 704 kW

Displacement: 32.1 l

Revolutions at max torque: 1200 rpm

No. of cylinders: 12

Cylinder bore x stroke: 146x162 mm

Emission level: Tier 2

More technical details, like: steering, turning radius outside, model series, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar 777G FAQ

When was the Caterpillar 777G manufactured?

The Caterpillar 777G was first produced in 2017.

How much does the Caterpillar 777G rigid dump truck weigh?

The Caterpillar 777G rigid dump truck weighs 73.85 tons.

What are the transport dimensions of the Caterpillar 777G rigid dump truck?

The Caterpillar 777G has a transport length of 10.53 meters, a transport width of 6.2 meters, and a transport height of 5.2 meters.

What is the travel speed of the Caterpillar 777G rigid dump truck?

The Caterpillar 777G has a travel speed of 67.1 km/h.

What are the undercarriage tyre specifications of the Caterpillar 777G rigid dump truck?

The Caterpillar 777G rigid dump truck is equipped with standard tyres sized 27.00R49.

What is the material handling capacity of the Caterpillar 777G rigid dump truck?

The Caterpillar 777G has a net load capacity of 90.8 tons, a dump capacity of 60.1 cubic meters, and a loading height of 4.38 meters.
