772 Caterpillar 772 Specifications & Technical Data (2007—2015)

Model rating
10,00 / 10

Weight: 35.4t – Standard tyres: 21.00 R 33 – Dump capacity: 31.3m³ – Net load: 46.3t – Steering: VL – Transport length: 8.18m

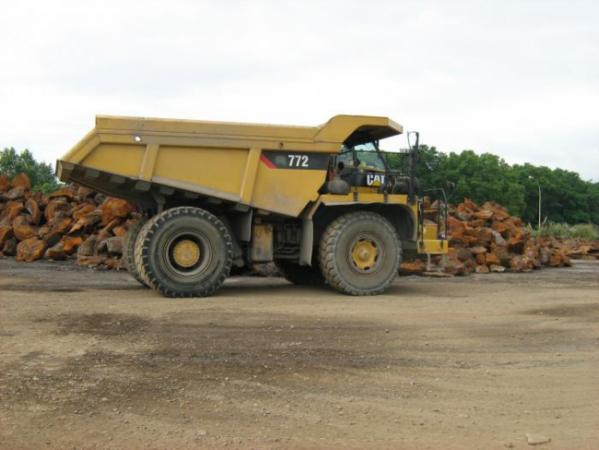

Rigid Dump Trucks Caterpillar 772
Rigid Dump Trucks Caterpillar 772
Rigid Dump Trucks Caterpillar 772
Rigid Dump Trucks Caterpillar 772

Technical specs - 772 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.4 t
Standard tyres
21.00 R 33
Dump capacity
31.3 m³
Net load
46.3 t
Steering
VL
Transport length
8.18 m
Transport width
4.75 m
Transport height
4.1 m
Travel speed
80 km/h
Loading height
3.55 m
Engine manuf.
Caterpillar
Engine type
C18 Acert
Engine power
399 kW
Displacement
18.1 l
Revolutions at max torque
1800 rpm

More technical details, like: turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, engine manufacturer, engine model, aspiration...

More technical details, like: turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, engine manufacturer, engine model, aspiration, engine output - net, engine output - gross, transmission type, drive configuration, final drive, speeds - forward, tyre size, length - overall, height - max, height - over canopy / rock guard rail, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, width - over body, hoist - angle, fuel tank, engine oil, cooling system, transmission - system, body type, struck capacity, heaped capacity, gears - forward / reverse, speed - forward maximum, chassis with hoist, body weight, net weight, payload, gross weight, payload - highest possible are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
Yes

Download specalog and datasheets (PDF)

Caterpillar 772 FAQ

When was the Caterpillar 772 manufactured?

The Caterpillar 772 was manufactured from 2007 to 2015.

How much does the Caterpillar 772 weigh?

The Caterpillar 772 weighs 35.4 tons.

What are the transport dimensions of the Caterpillar 772 rigid dump truck?

The Caterpillar 772 has a transport length of 8.18 meters, a transport width of 4.75 meters, and a transport height of 4.1 meters.

What is the travel speed of the Caterpillar 772 rigid dump truck?

The Caterpillar 772 has a travel speed of 80 km/h.

What is the standard tyre size of the Caterpillar 772 rigid dump truck?

The Caterpillar 772 rigid dump truck is equipped with standard tyres sized 21.00 R 33.

What type of steering does the Caterpillar 772 rigid dump truck have?

The Caterpillar 772 rigid dump truck features front steering.

What is the material handling capacity of the Caterpillar 772 rigid dump truck?

The Caterpillar 772 has a net load capacity of 46.3 tons, a dump capacity of 31.3 cubic meters, and a loading height of 3.55 meters.
