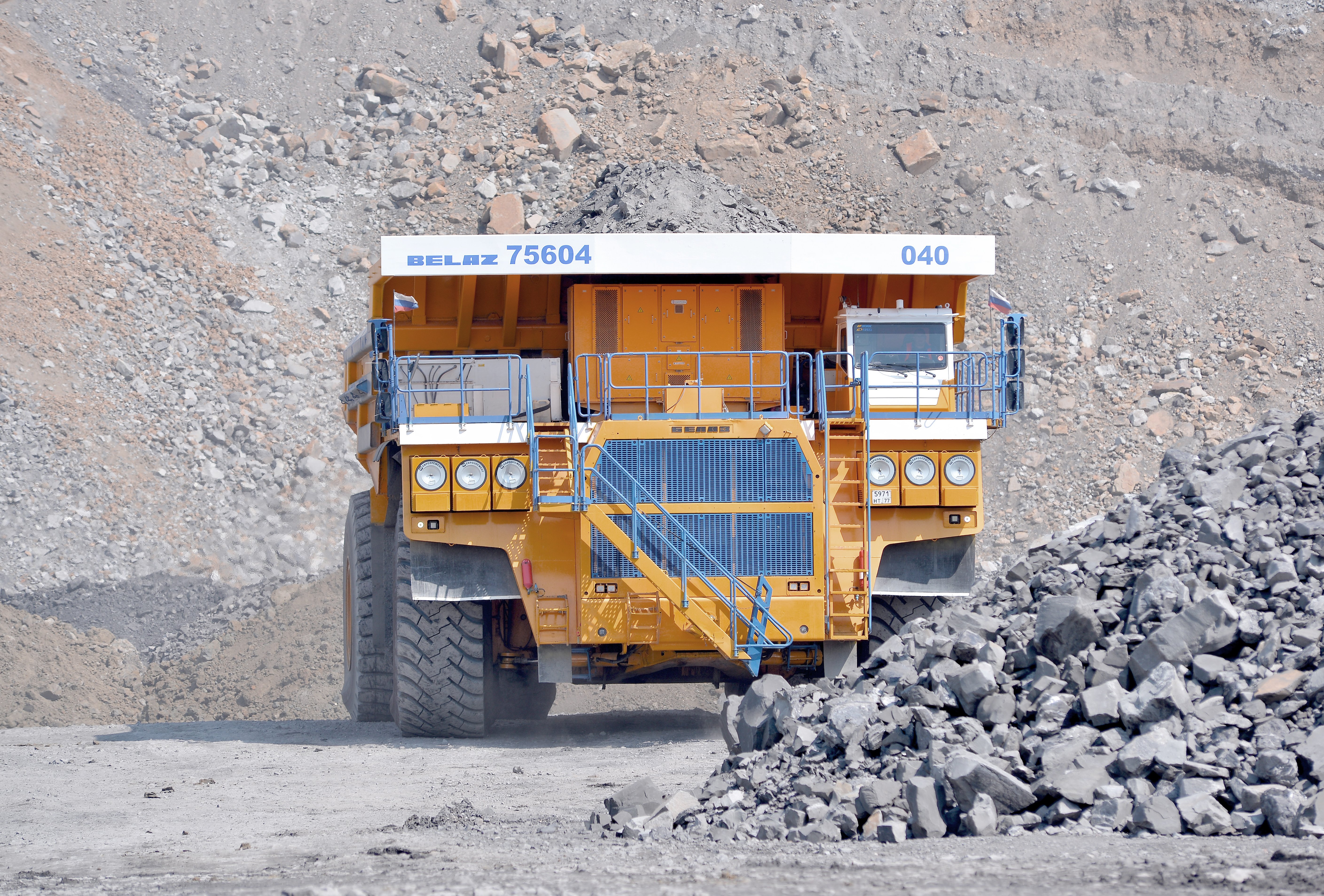

75604 Belaz 75604 Specifications & Technical Data (2010—2026)

Weight: 261t – Standard tyres: 59/80R63 – Dump capacity: 218.1m³ – Net load: 360t – Transport length: 15.5m – Transport width: 9.6m

Rigid Dump Trucks Belaz 75604

Technical specs - 75604 Belaz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
261 t
Standard tyres
59/80R63
Dump capacity
218.1 m³
Net load
360 t
Transport length
15.5 m
Transport width
9.6 m
Transport height
7.47 m
Travel speed
64 km/h
Turning radius outside
17.2 m
Loading height
6.75 m
Model series
7560
Engine manuf.
MTU
Engine type
20V4000
Engine power
2796 kW
No. of cylinders
20

More technical details, like: steering, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download datasheets (PDF)

Belaz 75604 FAQ

When was the Belaz 75604 manufactured?

The Belaz 75604 was first produced in 2010.

How much does the Belaz 75604 weigh?

The Belaz 75604 weighs 261 tons.

What are the transport dimensions of the Belaz 75604 rigid dump truck?

The Belaz 75604 has a transport length of 15.5 meters, a transport width of 9.6 meters, and a transport height of 7.47 meters.

What is the travel speed of the Belaz 75604 rigid dump truck?

The Belaz 75604 has a travel speed of 64 km/h.

What are the standard tyres specifications for the Belaz 75604 rigid dump truck?

The Belaz 75604 rigid dump truck is equipped with standard tyres sized 59/80R63.

What is the turning radius of the Belaz 75604 rigid dump truck?

The Belaz 75604 has an outside turning radius of 17.2 meters.

What is the material handling capacity of the Belaz 75604 rigid dump truck?

The Belaz 75604 rigid dump truck has a net load capacity of 360 tons and a dump capacity of 218.1 cubic meters.
