75603 Belaz 75603 Specifications & Technical Data (2010—2026)

Weight: 261t – Standard tyres: 59/80R63 – Dump capacity: 218.1m³ – Net load: 360t – Steering: VL – Transport length: 15.5m

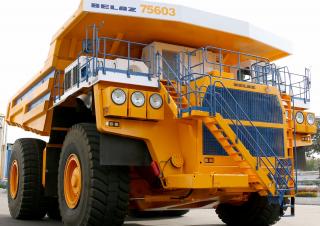

Rigid Dump Trucks Belaz 75603

Technical specs - 75603 Belaz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
261 t
Standard tyres
59/80R63
Dump capacity
218.1 m³
Net load
360 t
Steering
VL
Transport length
15.5 m
Transport width
9.6 m
Transport height
7.47 m
Travel speed
64 km/h
Turning radius outside
17.2 m
Loading height
6.75 m
Model series
7560
Engine manuf.
Cummins
Engine type
QSK 78-C
Engine power
2610 kW
Displacement
77.6 l
Revolutions at max torque
1500 rpm
Max. torque
13771 Nm
No. of cylinders
18
Cylinder bore x stroke
170x190 mm

More technical details, like: dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download datasheets (PDF)

Belaz 75603 FAQ

When was the Belaz 75603 manufactured?

The Belaz 75603 was first produced in 2010.

How much does the Belaz 75603 rigid dump truck weigh?

The Belaz 75603 rigid dump truck weighs 261 tons.

What are the transport dimensions of the Belaz 75603 rigid dump truck?

The Belaz 75603 has a transport length of 15.5 meters, a transport width of 9.6 meters, and a transport height of 7.47 meters.

What is the travel speed of the Belaz 75603 rigid dump truck?

The Belaz 75603 has a travel speed of 64 km/h.

What are the undercarriage specifications of the Belaz 75603 rigid dump truck?

The Belaz 75603 rigid dump truck is equipped with standard tyres sized 59/80R63.

What are the maneuverability specifications of the Belaz 75603 rigid dump truck?

The Belaz 75603 has a front steering system and an outside turning radius of 17.2 meters.

What is the material handling capacity of the Belaz 75603 rigid dump truck?

The Belaz 75603 has a net load capacity of 360 tons, a dump capacity of 218.1 cubic meters, and a loading height of 6.75 meters.

How much is a Belaz 75603 Rigid dump truck (2010u20132025) worth?

The residual value of the Belaz 75603 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
