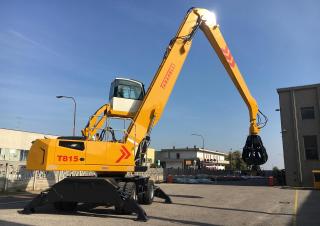

T815 Tabarelli T815 Specifications & Technical Data (2020—2026)

Weight: 38t – Standard tyres: 8.00/20 – Outrigger stabilisers: 22/4-fold – Transport length: 11.68m – Transport height: 3.6m – Transport width: 3m

Material Handlers Tabarelli T815

Technical specs - T815 Tabarelli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38 t
Standard tyres
8.00/20
Outrigger stabilisers
2 2/4-fold
Transport length
11.68 m
Transport height
3.6 m
Transport width
3 m
Max. Reach horizontal
15 m
Dredging depth
6 m
Dipper length
15 m
Travel speed
15 km/h
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
149 kW
Displacement
6.7 l
No. of cylinders
6
Emission level
EU V

More technical details, like: boom, tear-out force, turning radius inside, turning radius outside, track width, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Download datasheets (PDF)

Tabarelli T815 FAQ

When was the Tabarelli T815 manufactured?

The Tabarelli T815 was first produced in 2020.

How much does the Tabarelli T815 weigh?

The Tabarelli T815 weighs 38 tons.

What are the transport dimensions of the Tabarelli T815 material handler?

The Tabarelli T815 has a transport length of 11.68 meters, a transport width of 3 meters, and a transport height of 3.6 meters.

What type of outrigger stabilisers does the Tabarelli T815 have?

The Tabarelli T815 is equipped with 2-fold outrigger stabilisers.

What are the excavation performance specifications of the Tabarelli T815 material handler?

The Tabarelli T815 has a dredging depth of 6 meters, a maximum horizontal reach of 15 meters, and a dipper length of 15 meters.

How much is a Tabarelli T815 Material handler (2020u20132025) worth?

The residual value of the Tabarelli T815 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
