M25 Minelli M25 Specifications & Technical Data (2023—2026)

Weight: 25t – Standard tyres: 10.00x20” – Outrigger stabilisers: 22/4-fold – Transport length: 8.74m – Transport height: 3.2m – Transport width: 2.55m

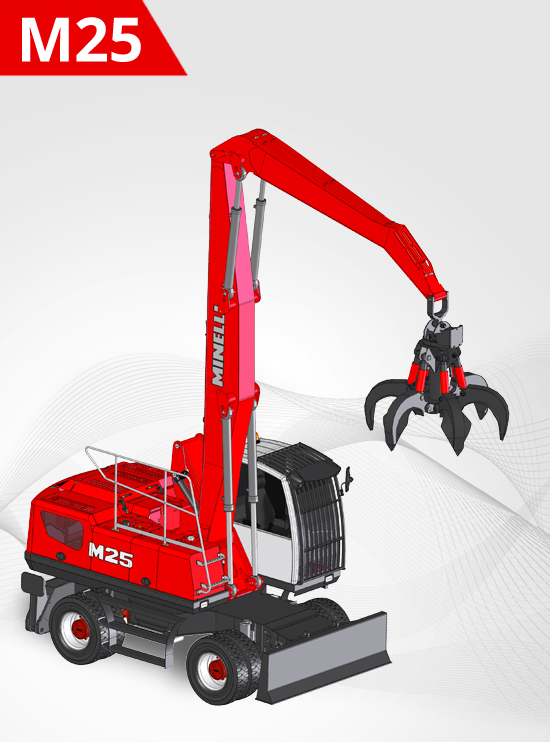

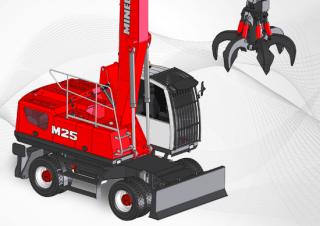

Material Handlers Minelli M25
Material Handlers Minelli M25
Material Handlers Minelli M25
Material Handlers Minelli M25
Material Handlers Minelli M25
Material Handlers Minelli M25
Material Handlers Minelli M25
Material Handlers Minelli M25
Material Handlers Minelli M25
Material Handlers Minelli M25

Technical specs - M25 Minelli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25 t
Standard tyres
10.00x20”
Outrigger stabilisers
2 2/4-fold
Transport length
8.74 m
Transport height
3.2 m
Transport width
2.55 m

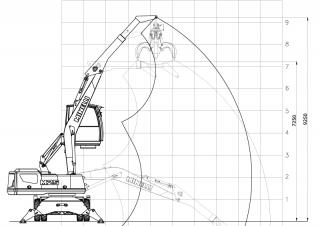

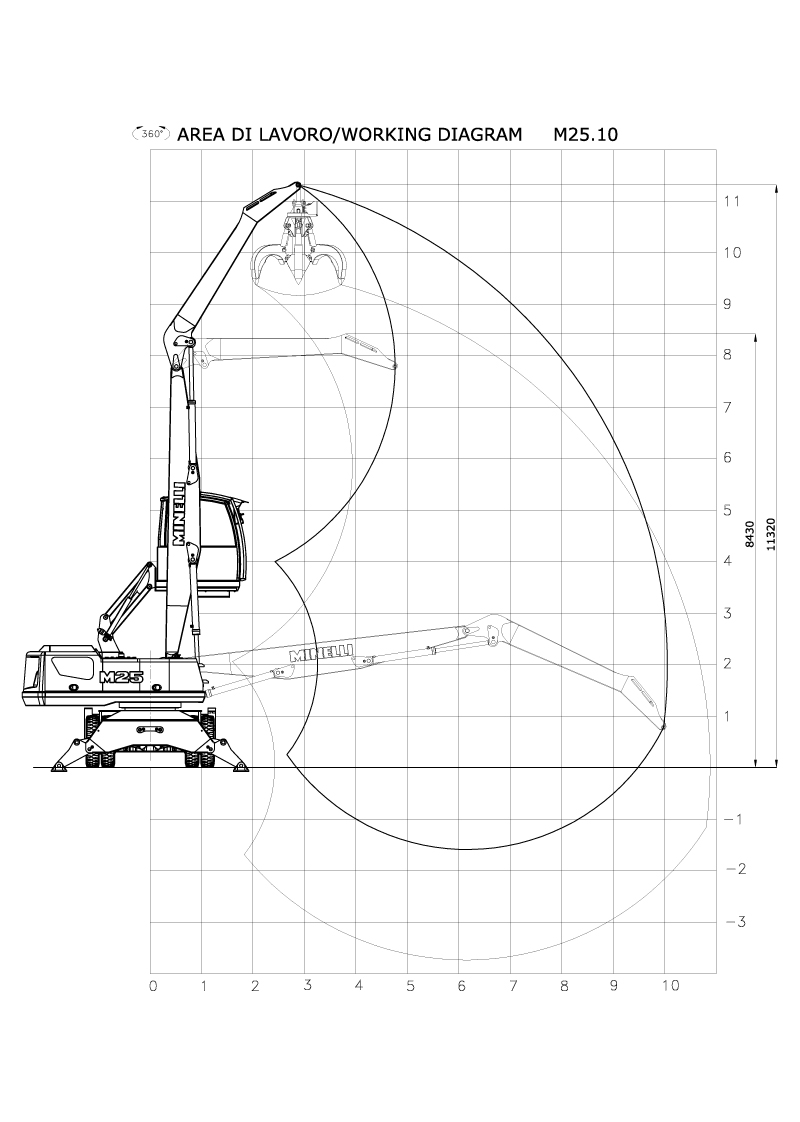

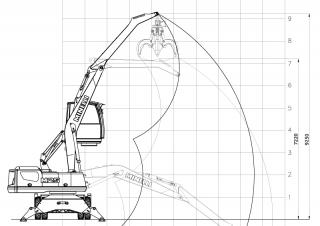

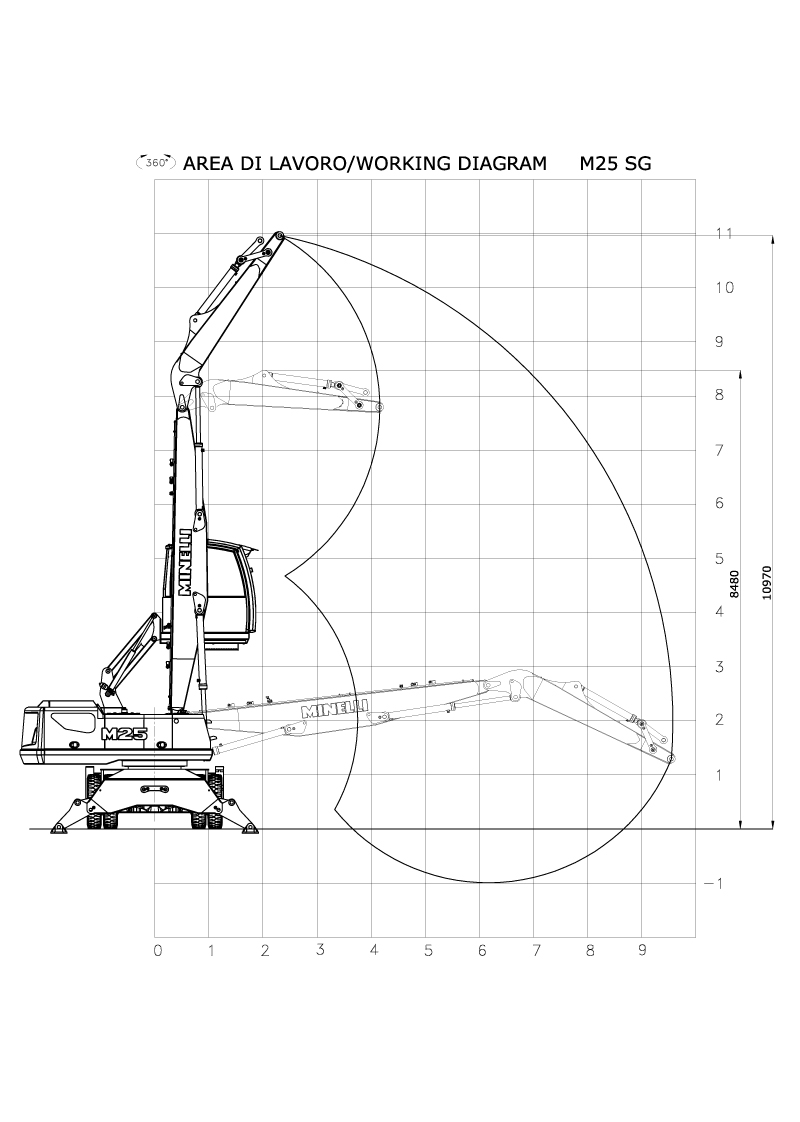

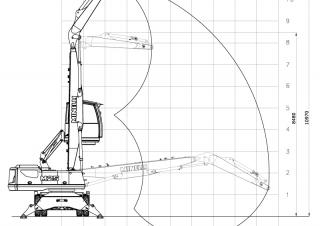

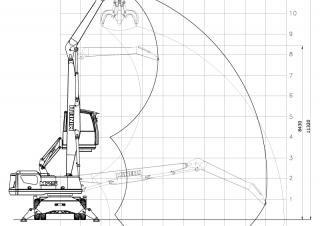

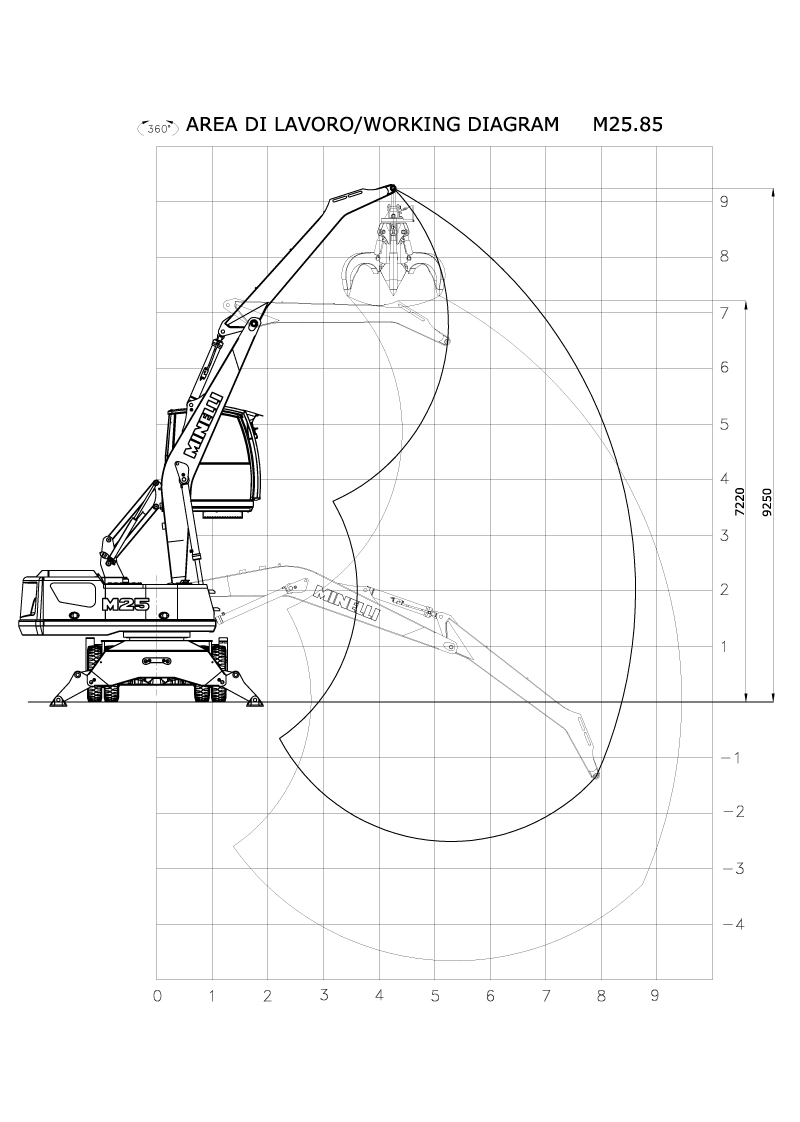

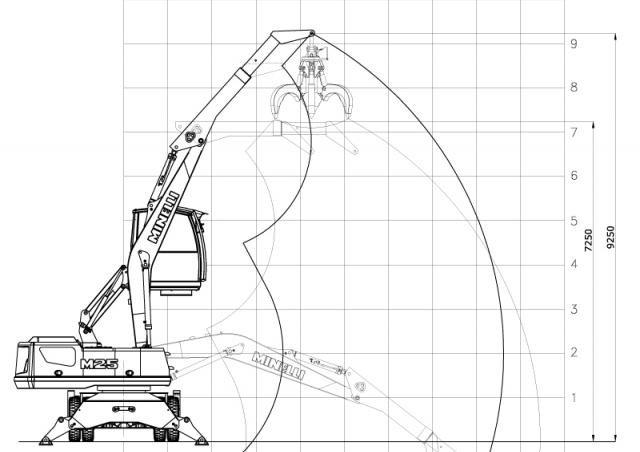

Max. Reach horizontal
10 m
Travel speed
12 km/h
Model series
M
Engine manuf.
Perkins
Engine type
1204J-E44TA
Engine power
106 kW
Displacement
4.4 l
Revolutions at max torque
1500 rpm
Max. torque
636 Nm
No. of cylinders
4
Emission level
EU Stage V

More technical details, like: boom, dredging depth, tear-out force, dipper length, turning radius inside, turning radius outside, track width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Download datasheets (PDF)

Minelli M25 FAQ

When was the Minelli M25 manufactured?

The Minelli M25 was first produced in 2023.

How much does the Minelli M25 material handler weigh?

The Minelli M25 weighs 25 tons.

What are the transport dimensions of the Minelli M25 material handler?

The Minelli M25 has a transport length of 8.74 meters, a transport width of 2.55 meters, and a transport height of 3.2 meters.

What is the travel speed of the Minelli M25 material handler?

The Minelli M25 has a travel speed of 12 km/h.

What are the undercarriage specifications of the Minelli M25 material handler?

The Minelli M25 is equipped with standard 10.00x20u201d tyres and has 2 outrigger stabilisers.

What is the maximum horizontal reach of the Minelli M25?

The Minelli M25 has a maximum horizontal reach of 10 meters.

How much is a Minelli M25 Material handler (2023u20132025) worth?

The residual value of the Minelli M25 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
