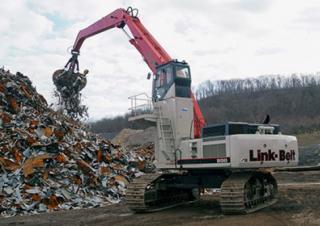

800 X2 MH Link-Belt 800 X2 MH Specifications & Technical Data (2015—2019)
Technical specs - 800 X2 MH Link-Belt
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 80.03 t
- Transport length
- 12.19 m
- Transport height
- 4.06 m
- Transport width
- 4.47 m
- Track width
- 750 mm
- Model series
- X2
- Engine manuf.
- Isuzu
- Engine type
- AH-6WG1XYSS
- Engine power
- 397 kW
- Displacement
- 15.7 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 2250 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 147x154 mm
More technical details, like: standard tyres, boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, emission level are available in the full technical specs.
Link-Belt 800 X2 MH FAQ
How much does the Link-Belt 800 X2 MH weigh?
What are the transport dimensions of the Link-Belt 800 X2 MH material handler?
What is the track width of the Link-Belt 800 X2 MH material handler?
How much is a Link-Belt 800 X2 MH Material handler (2015u20132019) worth?
