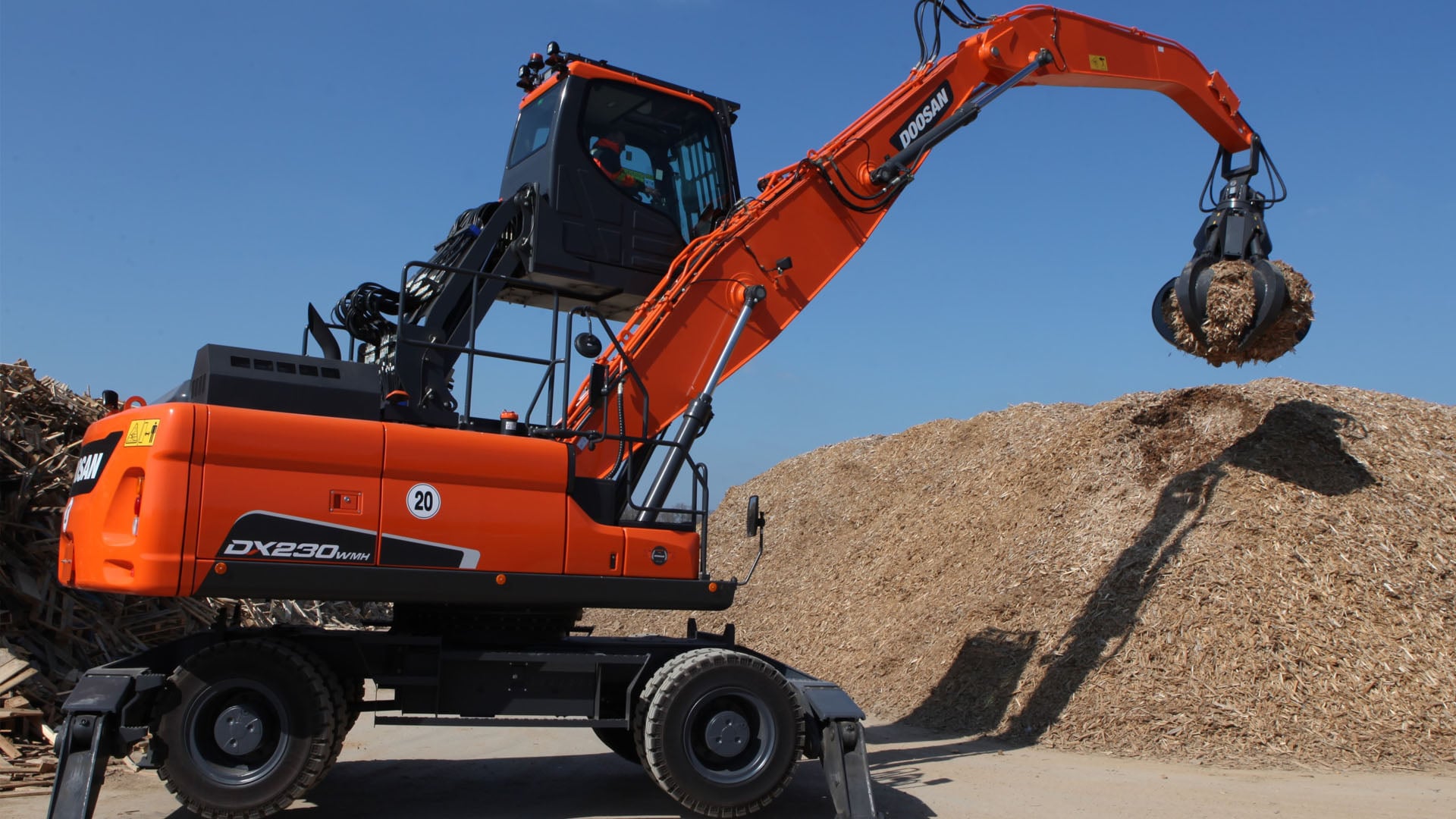

DX230WMH-5 Doosan DX230WMH-5 Specifications & Technical Data (2019—2021)
Technical specs - DX230WMH-5 Doosan
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 23.7 t
- Outrigger stabilisers
- 4 2/4-fold
- Transport length
- 9 m
- Transport height
- 5.6 m
- Transport width
- 2.7 m
- Max. Reach horizontal
- 10 m
- Travel speed
- 20 km/h
- Model series
- DX
- Engine manuf.
- Doosan
- Engine type
- DL06
- Engine power
- 129.4 kW
- Displacement
- 5.89 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 804 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 100x125 mm
- Emission level
- IV
More technical details, like: standard tyres, boom, dredging depth, tear-out force, dipper length, turning radius inside, turning radius outside, track width, dimension lxwxh are available in the full technical specs.
Download datasheets (PDF)
Doosan DX230WMH-5 FAQ
What is the weight of the Doosan DX230WMH-5 material handler?
What are the transport dimensions of the Doosan DX230WMH-5 material handler?
What is the travel speed of the Doosan DX230WMH-5 material handler?
What are the undercarriage specifications of the Doosan DX230WMH-5 material handler?
What is the maximum horizontal reach of the Doosan DX230WMH-5?
How much is a Doosan DX230WMH-5 Material handler (2019u20132021) worth?
Machine inspection
Ask for inspection of your Doosan DX230WMH-5 from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Doosan DX230WMH-5 with similar Material Handlers

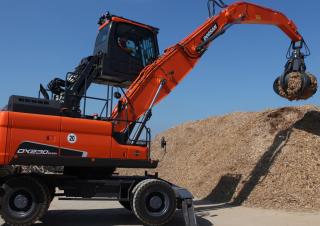

Doosan DX230WMH-5
