DX225MH-5 Develon DX225MH-5 Specifications & Technical Data (2023—2026)

Weight: 27.6t – Boom: UA – Outrigger stabilisers: 22/4-fold – Transport length: 9.48m – Transport height: 3.531m – Transport width: 3.19m

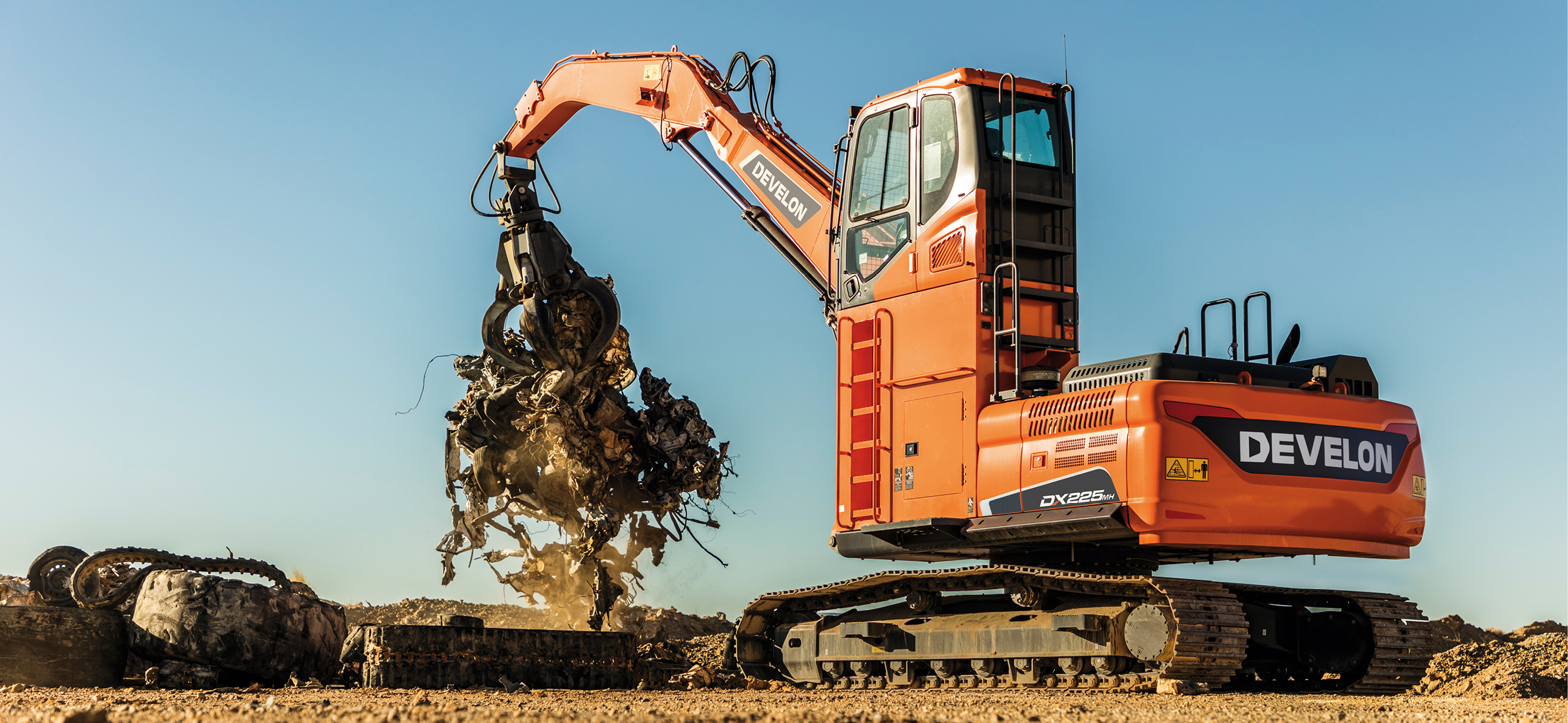

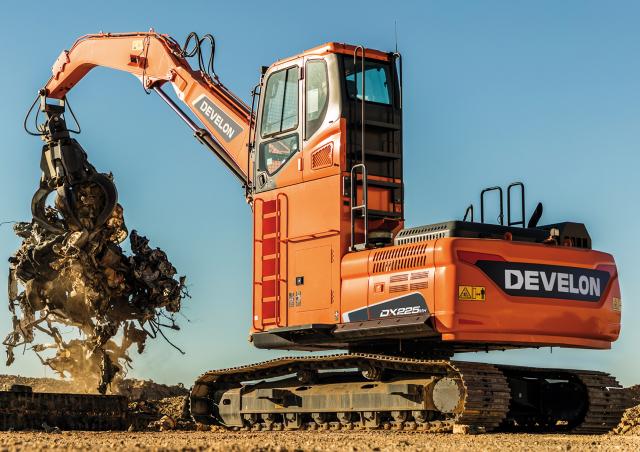

Material Handlers Develon DX225MH-5

Visit Develon live at

Technical specs - DX225MH-5 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.6 t
Boom
UA
Outrigger stabilisers
2 2/4-fold
Transport length
9.48 m
Transport height
3.531 m
Transport width
3.19 m
Max. Reach horizontal
10.67 m
Dredging depth
5.1 m
Travel speed
5.5 km/h
Track width
800 mm
Model series
DX
Engine manuf.
Develon
Engine type
DL06K
Engine power
123.7 kW
Displacement
5.9 l
Revolutions at max torque
1400 rpm
Max. torque
755.2 Nm
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
Tier 4

More technical details, like: standard tyres, tear-out force, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.
