MH3024 Caterpillar MH3024 Specifications & Technical Data (2018—2021)

Manufactured by Caterpillar, this is the MH 3024 wheel excavator. Find and download detailed specs and data sheets for this machin…

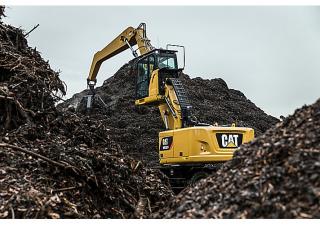

Manufactured by Caterpillar, this is the MH 3024 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Caterpillar MH 3024 is a 22.33t machine with Caterpillar engine which powers this model with up to 126kW or 168 horse power. The MH 3024 is categorised in the biggest machine segment in the wheel excavators category.

Since 2015, this model has included Aircondition, Material Handling Excavator and Cabin adjustment. It does not include Quick hitch hydr., Diesel particulate filter and Track guidance. There are more detailed specifications and machine descriptions available in the original Caterpillar MH 3024 specs data sheet. Specification sheet is available for a free download in English - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €391000 and €498000. Production of the MH 3024 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Caterpillar currently produces 19 other wheel excavators, which range from 13.7t up to 39.5t - the most visited on LECTURA Specs are M 318 F, M 314 F, M 320 F. This MH 3024 wheel excavator, which has been in production between 2015 and 2017 ranks in the LECTURA index at #54. Want more detailed specifications? Download the latest Caterpillar MH 3024 specs data sheet on LECTURA Specs today!

MH3024

Years of manufacture: 2018—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - MH3024 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 24.06 t

Standard tyres: 10.00-20

Boom: UA

Outrigger stabilisers: 4 2/4-fold

Transport length: 9.71 m

Transport height: 3.62 m

Transport width: 2.99 m

Max. Reach horizontal: 10.34 m

Dredging depth: 1.48 m

Travel speed: 25 km/h

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 126 kW

Displacement: 7.01 l

Revolutions at max torque: 1400 rpm

Max. torque: 830 Nm

No. of cylinders: 6

Cylinder bore x stroke: 105x135 mm

Emission level: Tier 4 Final/Stage IV

More technical details, like: tear-out force, dipper length, turning radius inside, turning radius outside, track width, model series, dimension lxwxh are available in the full technical specs.

Download specalog and datasheets (PDF)

Caterpillar MH3024 FAQ

When was the Caterpillar MH3024 manufactured?

The Caterpillar MH3024 was manufactured from 2018 to 2021.

How much does the Caterpillar MH3024 weigh?

The Caterpillar MH3024 weighs 24.06 tons.

What are the transport dimensions of the Caterpillar MH3024?

The Caterpillar MH3024 has a transport length of 9.71 meters, a transport width of 2.99 meters, and a transport height of 3.62 meters.

What is the travel speed of the Caterpillar MH3024 material handler?

The Caterpillar MH3024 has a travel speed of 25 km/h.

What are the undercarriage specifications of the Caterpillar MH3024 material handler?

The Caterpillar MH3024 is equipped with 10.00-20 standard tyres and has 4 outrigger stabilisers.

What are the excavation performance specifications of the Caterpillar MH3024 material handler?

The Caterpillar MH3024 has a dredging depth of 1.48 meters, a maximum horizontal reach of 10.34 meters, and is equipped with a material handling boom.
