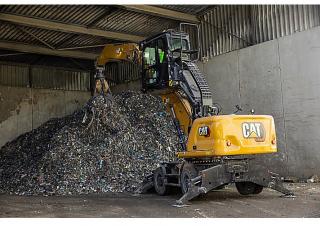

MH3022 Caterpillar MH3022 Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
Technical specs - MH3022 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 21.2 t
- Standard tyres
- 10.00-20
- Boom
- UA
- Outrigger stabilisers
- 4 2/4-fold
- Transport length
- 9.6 m
- Transport height
- 3.35 m
- Transport width
- 2.54 m
- Max. Reach horizontal
- 10.28 m
- Dredging depth
- 4.45 m
- Travel speed
- 20 km/h
- Engine manuf.
- Caterpillar
- Engine type
- C4.4 Acert
- Engine power
- 110 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 1140 rpm
- Max. torque
- 560 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 105x127 mm
- Emission level
- V
More technical details, like: tear-out force, dipper length, turning radius inside, turning radius outside, track width, model series, dimension lxwxh are available in the full technical specs.
