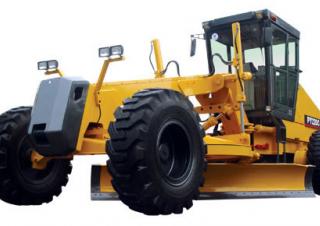

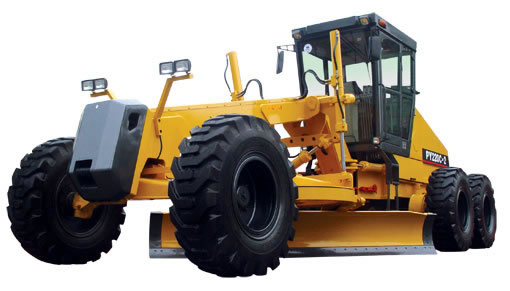

YTO PY220C Specifications & Technical Data (2017-2026)

Technical specs - PY220C YTO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.9 t

Steering mode: VKL

Drive: T

Transport length: 8.585 m

Transport width: 2.79 m

Transport height: 3.34 m

Travel speed: 36.8 km/h

Turning radius outside: 7.8 m

Model series: PY

Engine manuf.: Cummins

Engine type: 6CTA8.3

Engine power: 158 kW

More technical details, like: standard tyres, mouldboard width, front blade width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: No
Rear ripper: No
Aircondition: No

YTO PY220C FAQ

When was the YTO PY220C manufactured?

The YTO PY220C was first produced in 2017.

How much does the YTO PY220C grader weigh?

The YTO PY220C grader weighs 16.9 tons.

What are the transport dimensions of the YTO PY220C grader?

The YTO PY220C grader has a transport length of 8.59 meters, a transport width of 2.79 meters, and a transport height of 3.34 meters.

What is the travel speed of the YTO PY220C grader?

The YTO PY220C grader has a travel speed of 36.8 km/h.

What type of undercarriage drive does the YTO PY220C grader have?

The YTO PY220C grader has a tandem drive undercarriage.

What are the maneuverability specifications of the YTO PY220C grader?

The YTO PY220C grader has a turning radius of 7.8 meters and features front and articulated-frame steering.
