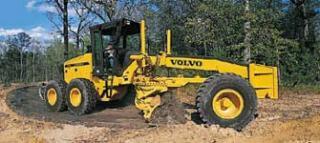

G740B Volvo G740B Specifications & Technical Data (2002—2005)

Cab & controls

All controls are located in a 90° arc forward and to the right of the operator. The enclosed cab has a fully adjustable, cloth-covered suspension seat as standard and comes with a 3" (76 mm) seat belt. Located forward of the operator are the engine oil pressure, coolant temperature, and fuel level gauges, transmission gear indicator, and a multi-function electronic monitoring display. In the fully adjustable steering pedestal, you will find the following switches: differential lock/unlock, hazard lights, combination turn signal, horn, and high beam headlight. Heater and wiper/washer controls (if equipped), along with lighting and accessory switches, are grouped in the operator’s right-hand console. This console contains the ignition key and provides access to the circuit breaker and fuse panel. An accelerator/decelerator foot pedal and slider-type hand throttle are standard equipment. Additionally, outside mounted rear view mirrors (left and right) and a convex interior mirror are standard. Interior operator noise levels average 75 dB(A) per ISO 6394 (enclosed cab).

Transmission Features

8400 fully sequential direct drive powershift transmission Choice of fully enclosed, ROPS cab in full height or low profile configuration, or ROPS canopy Moveable Blade Control System Load sensing, Closed Center Hydraulic System Fully adjustable control pedestal with low effort hydraulic controls Full front and rear frame sections designed for attachment mounting Engine cooling module with efficient, variable speed, hydraulically driven cooling fan Single lever “Smart Shifter” transmission control with gear memory feature Hydraulically Boosted Dual Crossover Braking System with reserve power assist Heavy duty lock/unlock differential Contronic Monitoring System for all machine functions Full range of front and rear mounted attachments Equipped with the fuel efficient, long life Volvo engine that complies to the EPA Tier II, EU Stage II emission standards.

Circle drive

The Volvo dual cylinder Circle Drive System uses direct acting hydraulic power for exceptional turning and holding capability under full load. The Circle Drive System uses hardened drive pinions and is protected against impact damage by an overload relief valve as standard equipment.

Load Sensing Hydraulics

Closed Center Hydraulic System senses load requirements and maintains system pressure at 350 psi (24 Bar) above the load pressure. The system features an industry standard control arrangement complete with low effort, feathering type, short throw levers located on a fully adjustable steering pedestal. Additionally, the system incorporates lock valves to prevent cylinder drift under load in the following circuits: blade lift, moldboard tilt, circle shift, wheel lean, circle turn, and articulation. Hydraulic system features include an axial piston pump, pressure and flow compensated, variable displacement with high output for smooth multi-functioning. The pump drive shaft is equipped with Perma Lube U-joints.

Frame

Full front and rear frame sections. Front: Robotically welded box section. Dual sloped front frame provides excellent forward visibility.

Drawbar

Fully welded box section. Narrow “T” design permits optimum visibility to the work area. Drawbar ball stud provides an adjustment to compensate for different tire sizes. Blade lift cylinder anchor has a serrated mount on the drawbar to provide maximum strength and support.
