Technical specs - 922AWD SEM
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.56 t
- Transport length
- 8.854 m
- Transport width
- 2.63 m
- Transport height
- 3.36 m
- Mouldboard width
- 4.279 m
- Travel speed
- 40 km/h
- Turning radius outside
- 7.8 m
- Engine manuf.
- SDEC
- Engine type
- SC9D220G2
- Engine power
- 162 kW
More technical details, like: standard tyres, steering mode, drive, front blade width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

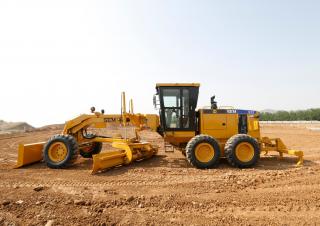

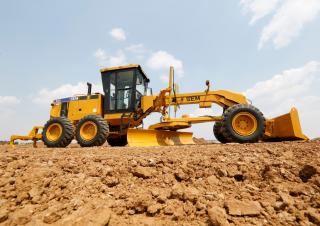

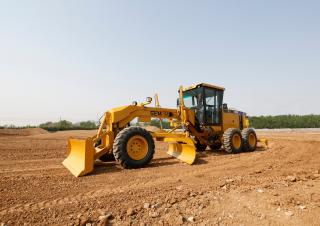

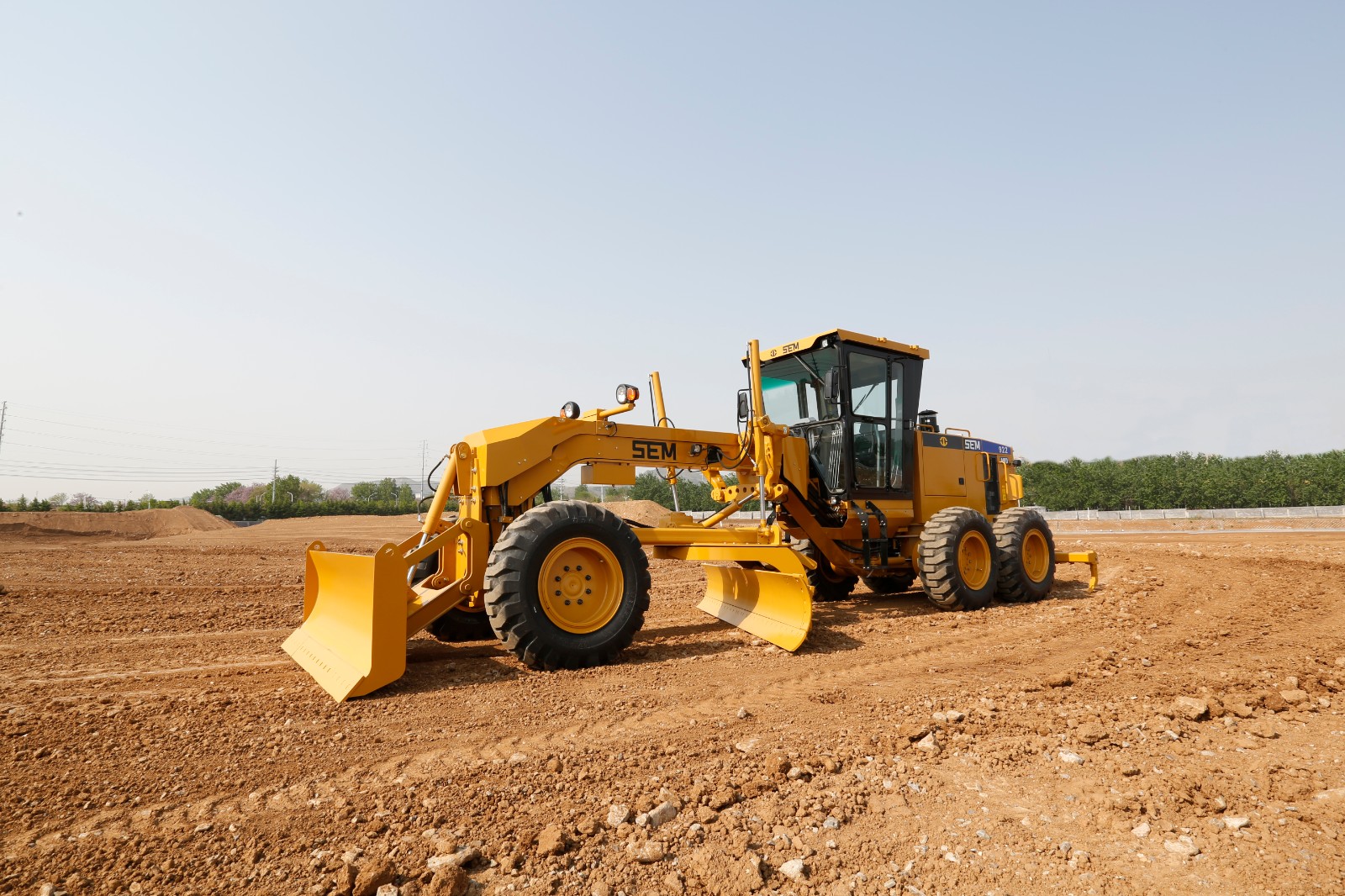

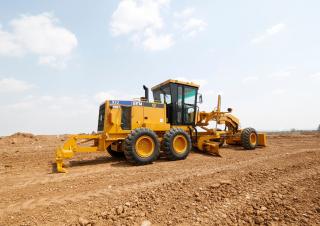

Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
No
- Front blade
-
No
- Rear ripper
-
No
- Aircondition
-
No
Download datasheets (PDF)
