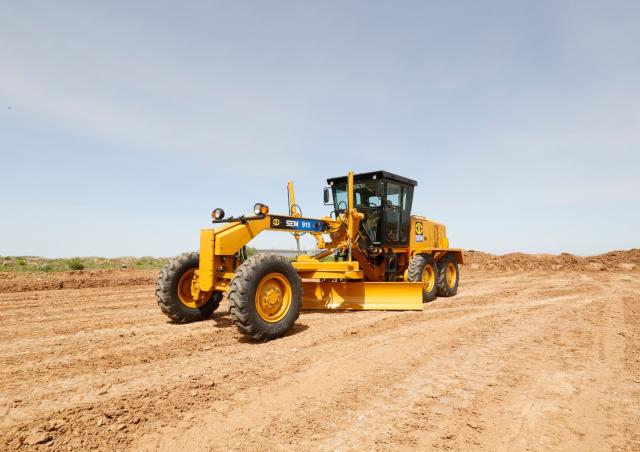

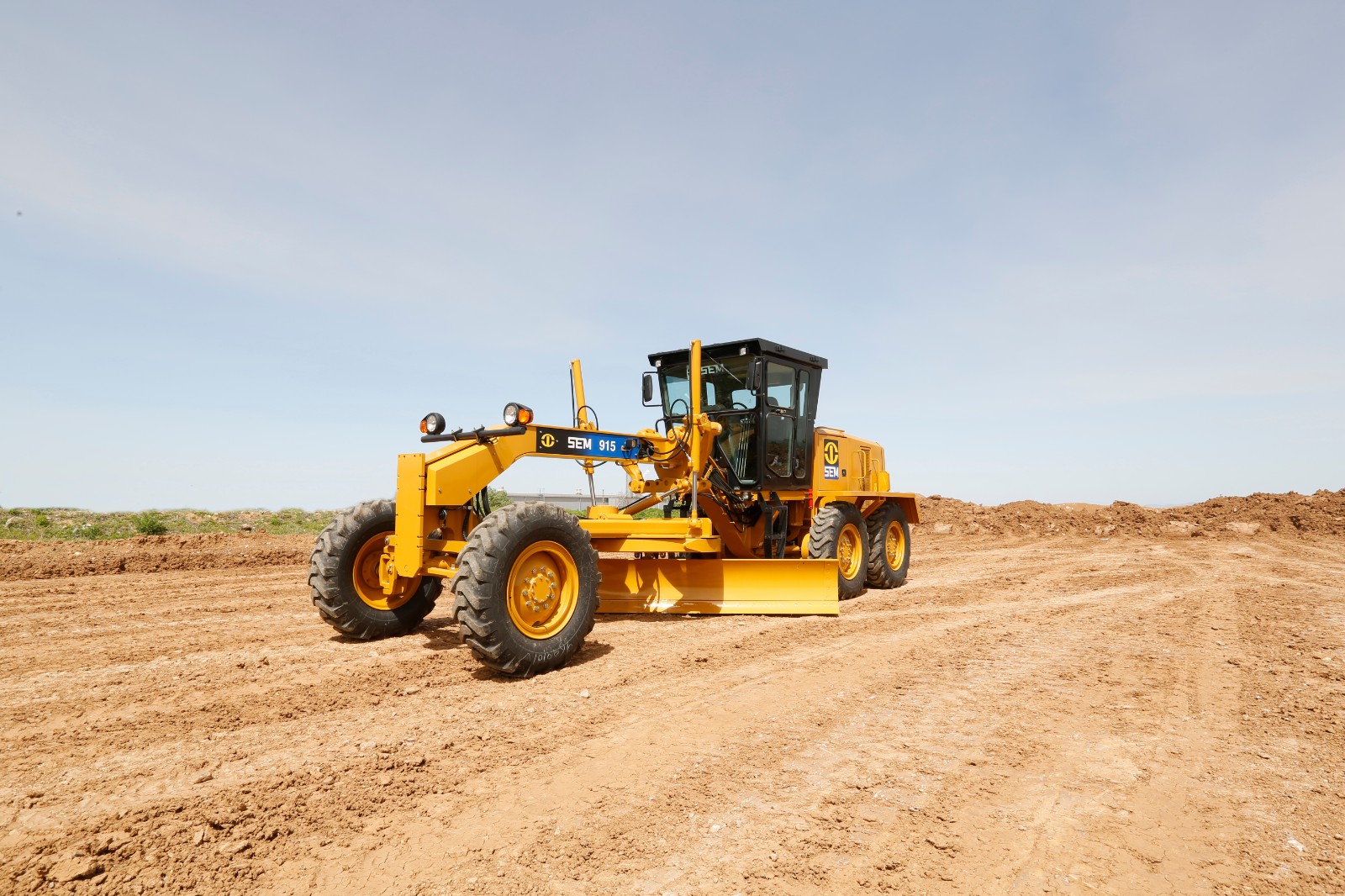

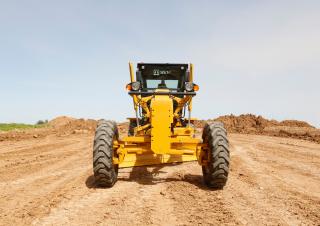

915 SEM 915 Specifications & Technical Data (2020—2026)

Weight: 12.2t – Transport length: 8.516m – Transport width: 4.125m – Transport height: 2.97m – Mouldboard width: 3.059m – Travel speed: 40km/h

915

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 915 SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.2 t

Transport length: 8.516 m

Transport width: 4.125 m

Transport height: 2.97 m

Mouldboard width: 3.059 m

Travel speed: 40 km/h

Turning radius outside: 7.3 m

Engine manuf.: SDEC

Engine type: SC7H150G2B

Engine power: 110 kW

Displacement: 6.5 l

Revolutions at max torque: 2200 rpm

Max. torque: 570/1400 Nm

No. of cylinders: 6

Cylinder bore x stroke: 105x124 mm

Emission level: Tier 2

More technical details, like: standard tyres, steering mode, drive, front blade width, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: No
Rear ripper: No
Aircondition: No

Download datasheets (PDF)

915 SEM Specification for Europe (EN)

SEM 915 FAQ

When was the SEM 915 manufactured?

The SEM 915 was first produced in 2020.

How much does the SEM 915 weigh?

The SEM 915 weighs 12.2 tons.

What are the transport dimensions of the SEM 915 grader?

The SEM 915 grader has a transport length of 8.52 meters, a transport width of 4.13 meters, and a transport height of 2.97 meters.

What is the travel speed of the SEM 915 grader?

The SEM 915 grader has a travel speed of 40 km/h.

What is the turning radius of the SEM 915 grader?

The SEM 915 grader has an outside turning radius of 7.3 meters.

What is the mouldboard width of the SEM 915 grader?

The SEM 915 grader has a mouldboard width of 3.06 meters.
