STG190C-10S Sany STG190C-10S Specifications & Technical Data (2026—2026)

Weight: 15.8t – Standard tyres: 17.5-25(12PR) – Steering mode: VTL – Drive: T – Transport length: 9.51m – Transport width: 2.74m

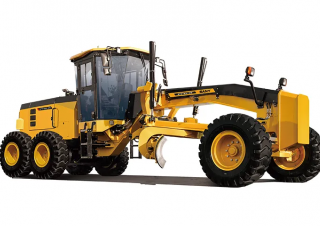

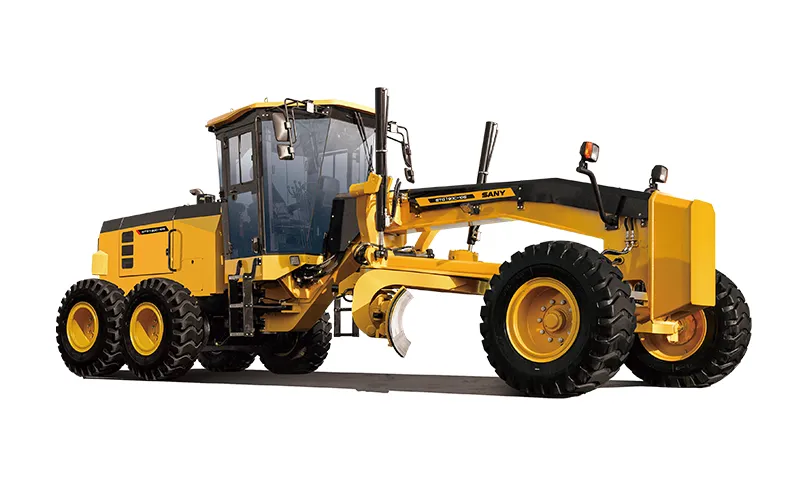

Graders Sany STG190C-10S

Visit Sany live at

Technical specs - STG190C-10S Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.8 t
Standard tyres
17.5-25(12PR)
Steering mode
VTL
Drive
T
Transport length
9.51 m
Transport width
2.74 m
Transport height
3.5 m
Mouldboard width
3.66 m
Travel speed
38 km/h
Model series
STG
Engine manuf.
DongFeng Cummins
Engine type
QSB6.7-C190-30
Engine power
142 kW
Revolutions at max torque
2000 rpm
Max. torque
931 Nm
Emission level
III

More technical details, like: front blade width, turning radius outside, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No

Download datasheets (PDF)
